Step1: Product
Kycon, Inc. KLDHCX-MM-0202-BTR

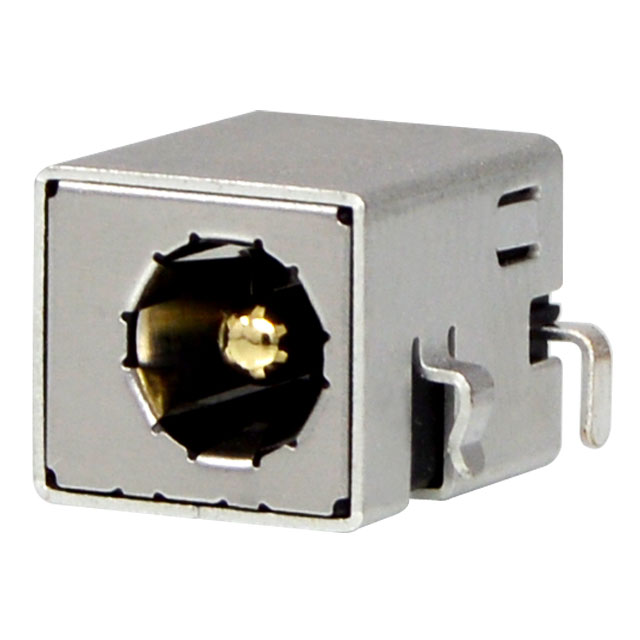

Image shown is a representation only
Manufacturer
Manufacturer No
KLDHCX-MM-0202-BTR
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN PWR JACK 2.5X5.5MM SOLDER
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Board Cutout, Through Hole, Right Angle
Datasheet
Gender
Male
Series
KLDHCX-MM
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shielding
Unshielded
Body Color
Black
Termination
Solder
Manufacturer
Kycon, Inc.
Mounting Type
Board Cutout, Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.098" (2.50mm ID), 0.236" (6.00mm OD)
Voltage - Rated
24V
Contact Material
Brass, Phosphor Bronze
Housing Material
Thermoplastic
Internal Switch(s)
Single Switch, Normally Closed
Base Product Number
KLDHCX
Current Rating (Amps)
5 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Gold, Tin
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | KLDHCX-MM |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Unshielded |
| Body Color | Black |
| Termination | Solder |
| Manufacturer | Kycon, Inc. |
| Mounting Type | Board Cutout, Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.098" (2.50mm ID), 0.236" (6.00mm OD) |
| Voltage - Rated | 24V |
| Contact Material | Brass, Phosphor Bronze |
| Housing Material | Thermoplastic |
| Internal Switch(s) | Single Switch, Normally Closed |
| Base Product Number | KLDHCX |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Gold, Tin |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
