Step1: Product

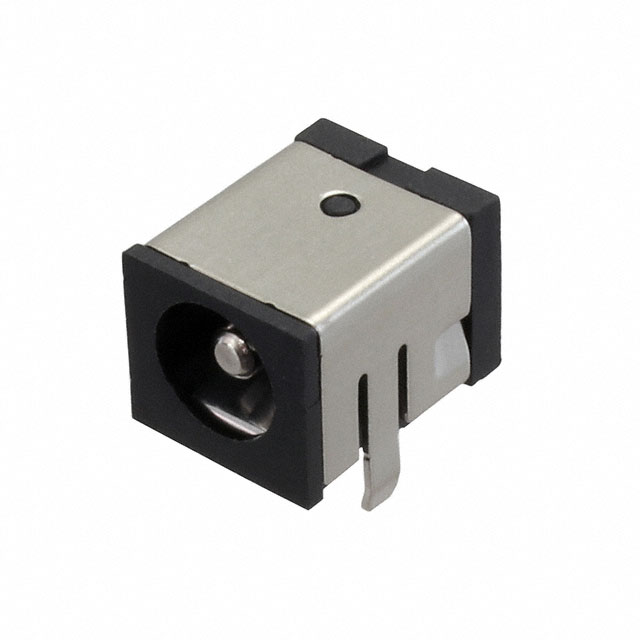

Kycon, Inc. KLDHCX-8-0202-B
Image shown is a representation only
Manufacturer
Manufacturer No
KLDHCX-8-0202-B
Packaging
Bag
Description
CONN PWR JACK 2.5X5.5MM SOLDER
Detailed Description
Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Through Hole, Right Angle
DataSheet
Gender
Male
Series
KLDHCX
Features
Board Guide
Packaging
Bag
Shielding
Shielded
Body Color
Black
Part Status
Active
Termination
Solder
Manufacturer
Kycon, Inc.
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.098" (2.50mm ID), 0.256" (6.50mm OD)
Voltage - Rated
24VDC
Contact Material
Brass; Copper Alloy
Housing Material
Polybutylene Terephthalate (PBT)
Internal Switch(s)
Does Not Contain Switch
Base Product Number
KLDHCX
Current Rating (Amps)
8 A
Operating Temperature
-25°C ~ 85°C
Contact Material - Plating
Silver
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 2 Contacts
Industry Recognized Mating Diameter
2.50mm ID (0.098"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | KLDHCX |
| Features | Board Guide |
| Packaging | Bag |
| Shielding | Shielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Kycon, Inc. |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.098" (2.50mm ID), 0.256" (6.50mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Brass; Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Internal Switch(s) | Does Not Contain Switch |
| Base Product Number | KLDHCX |
| Current Rating (Amps) | 8 A |
| Operating Temperature | -25°C ~ 85°C |
| Contact Material - Plating | Silver |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 2 Contacts |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") |
