Step1: Product

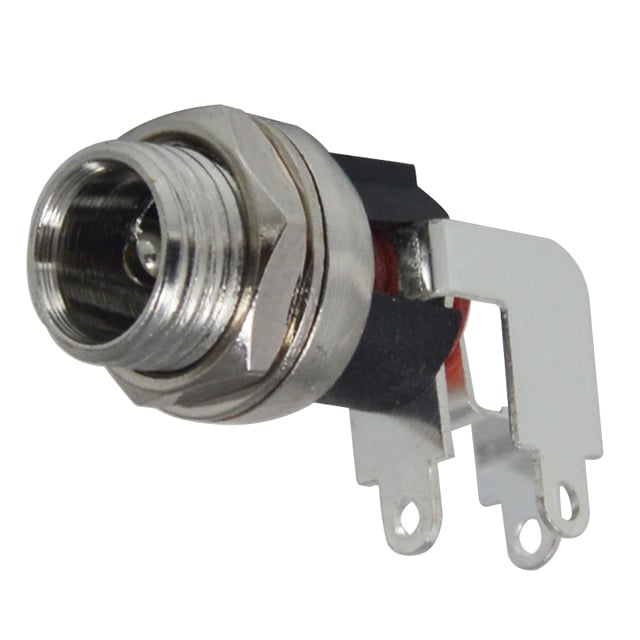

Kycon, Inc. KLDLX-0202-A
Image shown is a representation only
Manufacturer
Manufacturer No
KLDLX-0202-A
Packaging
Bag
Description
DC POWER JACK 2.0MM PNLMT R/A SO
Detailed Description
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Panel Mount, Through Hole, Right Angle
DataSheet
Gender
Male
Series
KLDLX
Features
Mounting Hardware, Thread Lock
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Packaging
Bag
Shielding
Unshielded
Body Color
Silver, Black
Part Status
Active
Termination
Solder
Thread Size
M8x0.75
Manufacturer
Kycon, Inc.
Body Material
Brass
Mounting Type
Panel Mount, Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.079" (2.00mm ID), 0.224" (5.70mm OD)
Voltage - Rated
24VDC
Contact Material
Brass, Phosphor Bronze
Housing Material
Polybutylene Terephthalate (PBT)
Insulation Color
Black
Mounting Feature
Bulkhead - Front Side Nut
Internal Switch(s)
Single Switch
Base Product Number
KLDLX-02
Current Rating (Amps)
3 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Nickel
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.00mm ID (0.079"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | KLDLX |
| Features | Mounting Hardware, Thread Lock |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | Silver, Black |
| Part Status | Active |
| Termination | Solder |
| Thread Size | M8x0.75 |
| Manufacturer | Kycon, Inc. |
| Body Material | Brass |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.079" (2.00mm ID), 0.224" (5.70mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Brass, Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Insulation Color | Black |
| Mounting Feature | Bulkhead - Front Side Nut |
| Internal Switch(s) | Single Switch |
| Base Product Number | KLDLX-02 |
| Current Rating (Amps) | 3 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Nickel |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
