Step1: Product

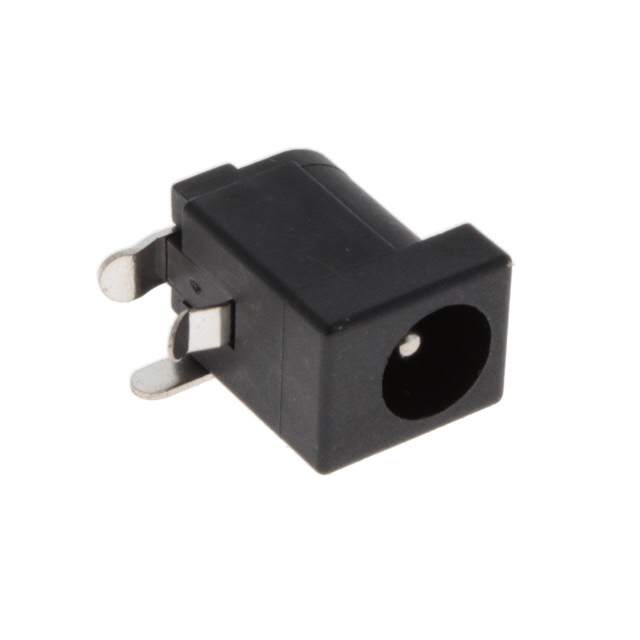

Kycon, Inc. KLDHCX-0202-AC-1
Image shown is a representation only
Manufacturer
Manufacturer No
KLDHCX-0202-AC-1
Packaging
Bag
Description
CONN POWER JACK SOLDER 2.0MM
Detailed Description
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole, Right Angle
DataSheet
Gender
Male
Series
KLDHCX
Packaging
Bag
Shielding
Unshielded
Body Color
Black
Part Status
Active
Termination
Kinked Pin, Solder
Manufacturer
Kycon, Inc.
Mounting Type
Through Hole, Right Angle
Connector Type
Jack
Actual Diameter
0.079" (2.00mm ID), 0.252" (6.40mm OD)
Voltage - Rated
24VDC
Contact Material
Brass, Phosphor Bronze
Housing Material
Polybutylene Terephthalate (PBT)
Internal Switch(s)
Single Switch, Normally Closed
Current Rating (Amps)
5 A
Contact Material - Plating
Tin
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.00mm ID (0.079"), 5.50mm OD (0.217")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | KLDHCX |
| Packaging | Bag |
| Shielding | Unshielded |
| Body Color | Black |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Manufacturer | Kycon, Inc. |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Jack |
| Actual Diameter | 0.079" (2.00mm ID), 0.252" (6.40mm OD) |
| Voltage - Rated | 24VDC |
| Contact Material | Brass, Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Internal Switch(s) | Single Switch, Normally Closed |
| Current Rating (Amps) | 5 A |
| Contact Material - Plating | Tin |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
