Step1: Product
Kycon, Inc. KLDHCX-MM-0202-ATR

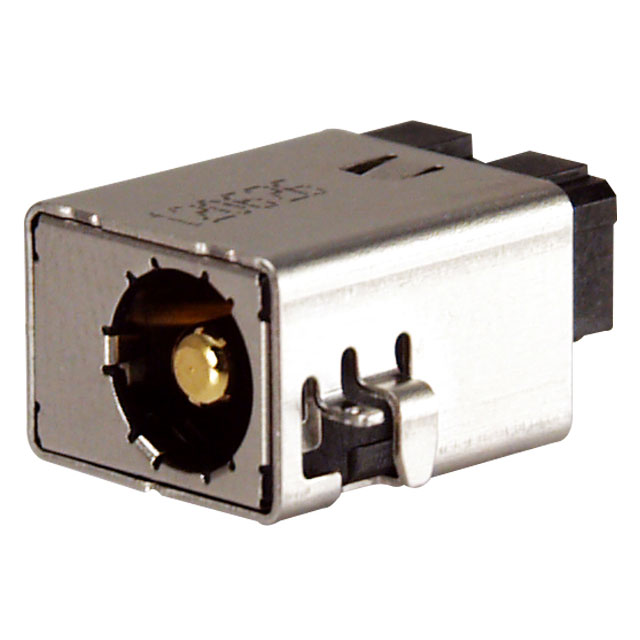

Image shown is a representation only
Manufacturer
Manufacturer No
KLDHCX-MM-0202-ATR
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
POWER JACK, MID MOUNT 2.0 MM DIA
Detailed Description
Power Barrel Connector Jack 2.00mm ID (0.079") Board Cutout, Through Hole, Right Angle
DataSheet
Gender
Male
Series
KLDHCX
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shielding
Shielded
Body Color
Silver
Part Status
Active
Termination
Solder
Manufacturer
Kycon, Inc.
Mounting Type
Board Cutout, Through Hole, Right Angle
Connector Type
Jack
Voltage - Rated
24VDC
Contact Material
Brass, Phosphor Bronze
Housing Material
Thermoplastic
Internal Switch(s)
Single Switch, Normally Closed
Base Product Number
KLDHCX
Current Rating (Amps)
5 A
Operating Temperature
-25°C ~ 70°C
Contact Material - Plating
Gold
Material Flammability Rating
UL94 V-0
Number of Positions/Contacts
2 Conductors, 3 Contacts
Industry Recognized Mating Diameter
2.00mm ID (0.079")
| Attribute | Value |
|---|---|
| Gender | Male |
| Series | KLDHCX |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shielding | Shielded |
| Body Color | Silver |
| Part Status | Active |
| Termination | Solder |
| Manufacturer | Kycon, Inc. |
| Mounting Type | Board Cutout, Through Hole, Right Angle |
| Connector Type | Jack |
| Voltage - Rated | 24VDC |
| Contact Material | Brass, Phosphor Bronze |
| Housing Material | Thermoplastic |
| Internal Switch(s) | Single Switch, Normally Closed |
| Base Product Number | KLDHCX |
| Current Rating (Amps) | 5 A |
| Operating Temperature | -25°C ~ 70°C |
| Contact Material - Plating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079") |
