Step1: Product

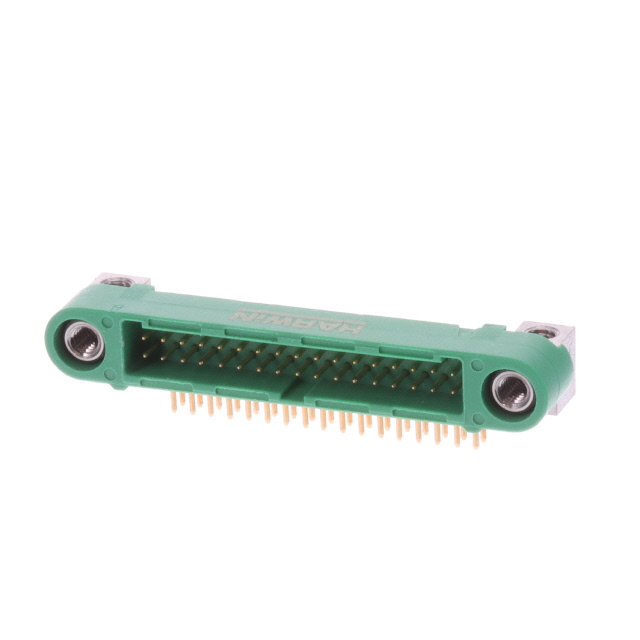

Harwin Inc. G125-MH13405M4P
Image shown is a representation only
Manufacturer
Manufacturer No
G125-MH13405M4P
Quantity
10
Availability
In Stock
Packaging
Strip
Description
CONN HDR 1.25MM R/A 34POS
Detailed Description
Connector Header Through Hole, Right Angle 34 position 0.049" (1.25mm)
DataSheet
Mfr
Harwin Inc.
Style
Board to Board or Cable
Series
Gecko SL
Features
Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
Packaging
Strip
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Screw Lock
Number of Rows
2
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
450V
Contact Material
Phosphor Bronze
Insulation Color
Green
Insulation Height
0.209" (5.30mm)
Base Product Number
G125-MH1
Insulation Material
Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Number of Positions
34
Row Spacing - Mating
0.049" (1.25mm)
Contact Finish - Post
Gold
Contact Length - Post
0.130" (3.30mm)
Current Rating (Amps)
2A
Operating Temperature
-65°C ~ 150°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
8.00µin (0.203µm)
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board or Cable |
| Series | Gecko SL |
| Features | Mating Flange, Mounting Flange, Pick and Place, Polarizing Key |
| Packaging | Strip |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Screw Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 450V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Green |
| Insulation Height | 0.209" (5.30mm) |
| Base Product Number | G125-MH1 |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Number of Positions | 34 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Contact Finish - Post | Gold |
| Contact Length - Post | 0.130" (3.30mm) |
| Current Rating (Amps) | 2A |
| Operating Temperature | -65°C ~ 150°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 8.00µin (0.203µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
