Step1: Product

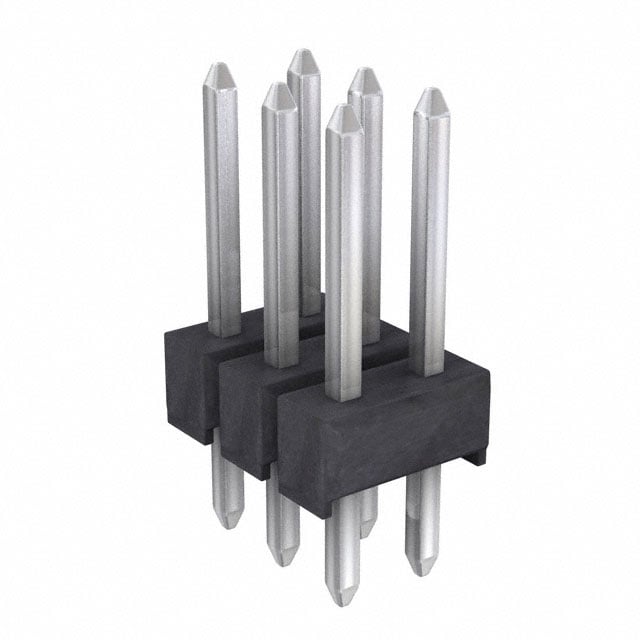

Harwin Inc. M20-9980346
Image shown is a representation only
Manufacturer
Manufacturer No
M20-9980346
Quantity
1330
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 6POS 2.54MM
Detailed Description
Connector Header Through Hole 6 position 0.100" (2.54mm)
DataSheet
Mfr
Harwin Inc.
Style
Board to Board or Cable
Series
M20
Packaging
Bulk
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header, Cuttable
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.100" (2.54mm)
Base Product Number
M20-998
Insulation Material
Polyamide (PA6T), Nylon 6T
Number of Positions
6
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.118" (3.00mm)
Current Rating (Amps)
3A per Contact
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
9.94mm, 10.64mm, 11.04mm, 16.54mm
Overall Contact Length
0.460" (11.68mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.240" (6.10mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board or Cable |
| Series | M20 |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header, Cuttable |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.100" (2.54mm) |
| Base Product Number | M20-998 |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118" (3.00mm) |
| Current Rating (Amps) | 3A per Contact |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 9.94mm, 10.64mm, 11.04mm, 16.54mm |
| Overall Contact Length | 0.460" (11.68mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.240" (6.10mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
