Step1: Product

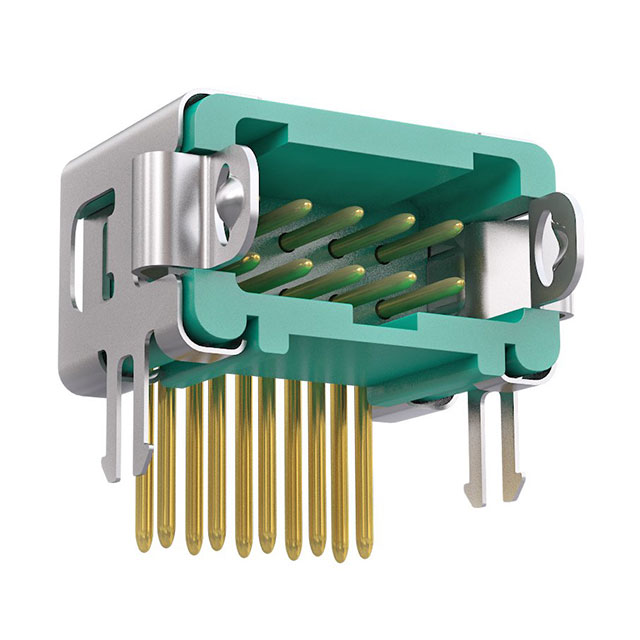

Harwin Inc. G125-MH11005L1P
Image shown is a representation only
Manufacturer
Manufacturer No
G125-MH11005L1P
Quantity
18
Availability
In Stock
Packaging
Strip
Description
CONN HEADER R/A 10POS 1.25MM
Detailed Description
Connector Header Through Hole, Right Angle 10 position 0.049" (1.25mm)
DataSheet
Mfr
Harwin Inc.
Style
Board to Board or Cable
Series
Gecko
Features
Board Lock
Packaging
Strip
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Fastening Type
Latch Lock
Number of Rows
2
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
250V
Contact Material
Phosphor Bronze
Insulation Color
Green
Insulation Height
0.219" (5.56mm)
Base Product Number
G125-MH1
Insulation Material
Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Number of Positions
10
Row Spacing - Mating
0.049" (1.25mm)
Contact Length - Post
0.130" (3.30mm)
Current Rating (Amps)
2A
Operating Temperature
-65°C ~ 150°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board or Cable |
| Series | Gecko |
| Features | Board Lock |
| Packaging | Strip |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 250V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Green |
| Insulation Height | 0.219" (5.56mm) |
| Base Product Number | G125-MH1 |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Contact Length - Post | 0.130" (3.30mm) |
| Current Rating (Amps) | 2A |
| Operating Temperature | -65°C ~ 150°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
