Step1: Product

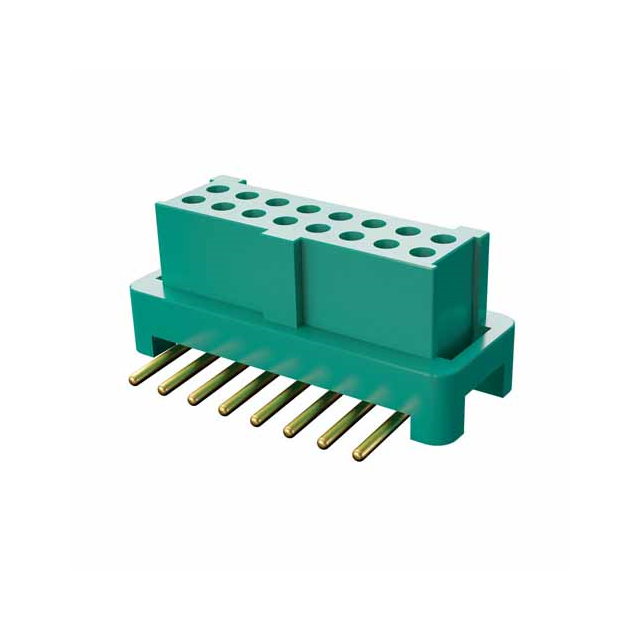

Harwin Inc. G125-FS11605L0R
Image shown is a representation only
Manufacturer
Manufacturer No
G125-FS11605L0R
Quantity
20
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN RCPT 16POS 0.049 GOLD SMD
Detailed Description
16 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Gold
DataSheet
Mfr
Harwin Inc.
Style
Board to Board or Cable
Series
Gecko
Features
Pick and Place, Polarizing Key
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose
Contact Type
Female Socket
Contact Shape
Circular
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.049" (1.25mm)
Contact Material
Copper Alloy
Insulation Color
Green
Insulation Height
0.207" (5.25mm)
Base Product Number
G125-FS1
Insulation Material
Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Number of Positions
16
Row Spacing - Mating
0.049" (1.25mm)
Contact Finish - Post
Gold
Current Rating (Amps)
2A
Operating Temperature
-65°C ~ 150°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
8.00µin (0.203µm)
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board or Cable |
| Series | Gecko |
| Features | Pick and Place, Polarizing Key |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact Type | Female Socket |
| Contact Shape | Circular |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.049" (1.25mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Green |
| Insulation Height | 0.207" (5.25mm) |
| Base Product Number | G125-FS1 |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Number of Positions | 16 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 2A |
| Operating Temperature | -65°C ~ 150°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
