Step1: Product

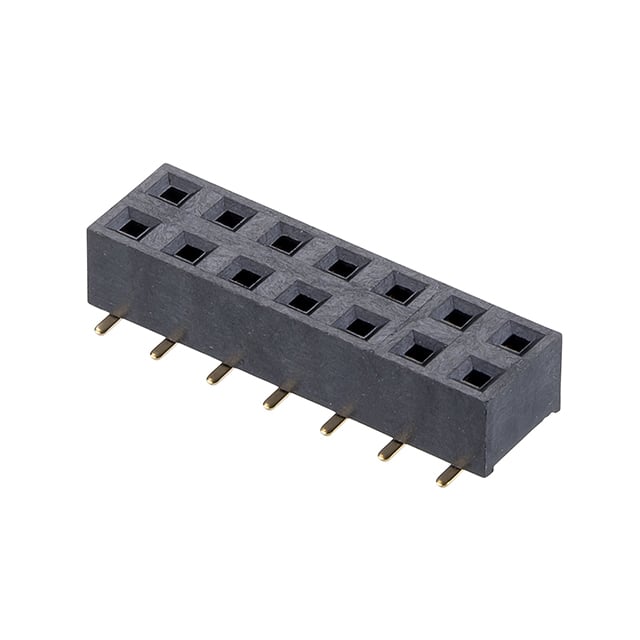

Harwin Inc. M20-7810745
Image shown is a representation only
Manufacturer
Manufacturer No
M20-7810745
Quantity
461
Availability
In Stock
Packaging
Tube
Description
CONN RCPT 14POS 0.1 GOLD SMD
Detailed Description
14 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold
DataSheet
Mfr
Harwin Inc.
Style
Board to Board
Series
M20
Features
Board Guide
Packaging
Tube
Part Status
Active
Termination
Solder
Applications
General Purpose
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle, Bottom or Top Entry
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.140" (3.56mm)
Base Product Number
M20-781
Insulation Material
Polyamide (PA9T), Nylon 9T, Glass Filled
Number of Positions
14
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Gold
Current Rating (Amps)
3A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
5.90µin (0.150µm)
Contact Finish Thickness - Mating
0.59µin (0.015µm)
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board |
| Series | M20 |
| Features | Board Guide |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle, Bottom or Top Entry |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.140" (3.56mm) |
| Base Product Number | M20-781 |
| Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Number of Positions | 14 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | 3A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 5.90µin (0.150µm) |
| Contact Finish Thickness - Mating | 0.59µin (0.015µm) |
