Step1: Product

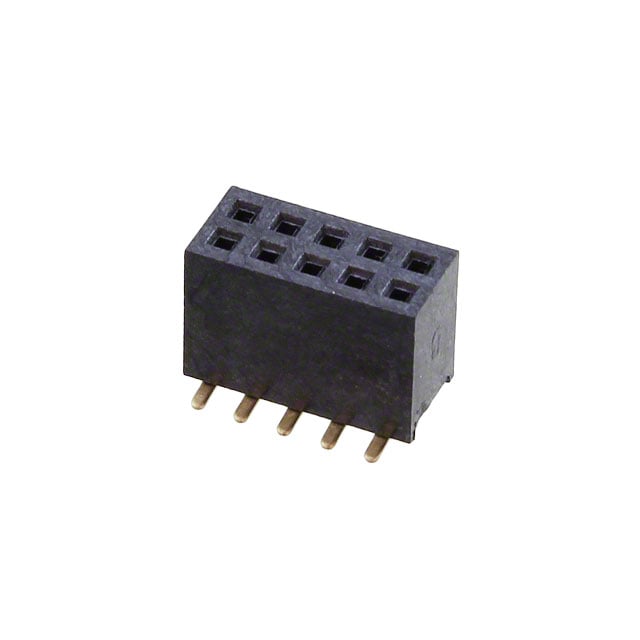

Harwin Inc. M50-3100545
Image shown is a representation only
Manufacturer
Manufacturer No
M50-3100545
Quantity
154
Availability
In Stock
Packaging
Tube
Description
CONN RCPT 10POS 0.05 GOLD SMD
Detailed Description
10 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Datasheet
Mfr
Harwin Inc.
Style
Board to Board or Cable
Series
Archer M50
Packaging
Tube
Termination
Solder
Applications
General Purpose, Medical, Telecommunications
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.050" (1.27mm)
Voltage Rating
250V
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.181" (4.60mm)
Base Product Number
M50-310
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
10
Row Spacing - Mating
0.050" (1.27mm)
Current Rating (Amps)
1A
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
5.5mm, 6.18mm
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
Flash
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board or Cable |
| Series | Archer M50 |
| Packaging | Tube |
| Termination | Solder |
| Applications | General Purpose, Medical, Telecommunications |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.050" (1.27mm) |
| Voltage Rating | 250V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.181" (4.60mm) |
| Base Product Number | M50-310 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 10 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Current Rating (Amps) | 1A |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 5.5mm, 6.18mm |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | Flash |
