Step1: Product

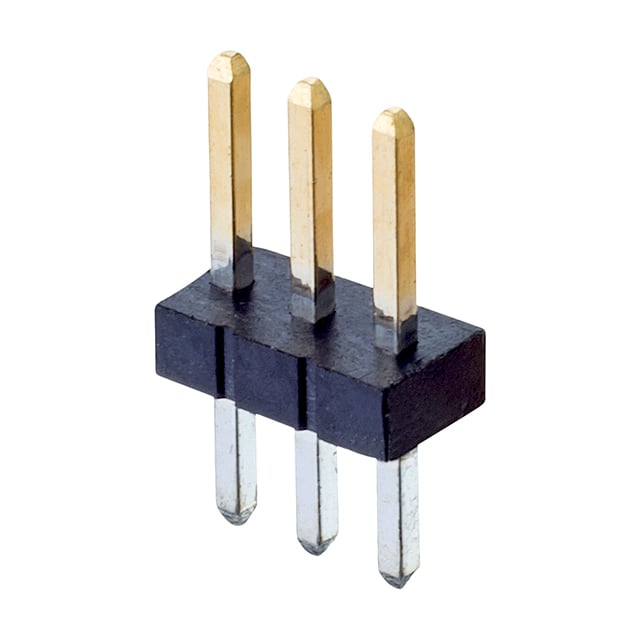

Harwin Inc. M50-3530342
Image shown is a representation only
Manufacturer
Manufacturer No
M50-3530342
Quantity
235
Availability
In Stock
Packaging
Box
Description
CONN HEADER VERT 3POS 1.27MM
Detailed Description
Connector Header Through Hole 3 position 0.050" (1.27mm)
DataSheet
Mfr
Harwin Inc.
Style
Board to Board
Series
Archer M50
Packaging
Box
Shrouding
Unshrouded
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.050" (1.27mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.039" (1.00mm)
Base Product Number
M50-353
Insulation Material
Polyamide (PA9T), Nylon 9T
Number of Positions
3
Contact Finish - Post
Tin
Contact Length - Post
0.091" (2.30mm)
Current Rating (Amps)
1A per Contact
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
3.10mm, 4.60mm, 5.40mm
Overall Contact Length
0.248" (6.30mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.118" (3.00mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
100.0µin (2.54µm)
| Attribute | Value |
|---|---|
| Mfr | Harwin Inc. |
| Style | Board to Board |
| Series | Archer M50 |
| Packaging | Box |
| Shrouding | Unshrouded |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.050" (1.27mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.039" (1.00mm) |
| Base Product Number | M50-353 |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.091" (2.30mm) |
| Current Rating (Amps) | 1A per Contact |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 3.10mm, 4.60mm, 5.40mm |
| Overall Contact Length | 0.248" (6.30mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.118" (3.00mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
