Diodes Incorporated DMP3056LSDQ-13

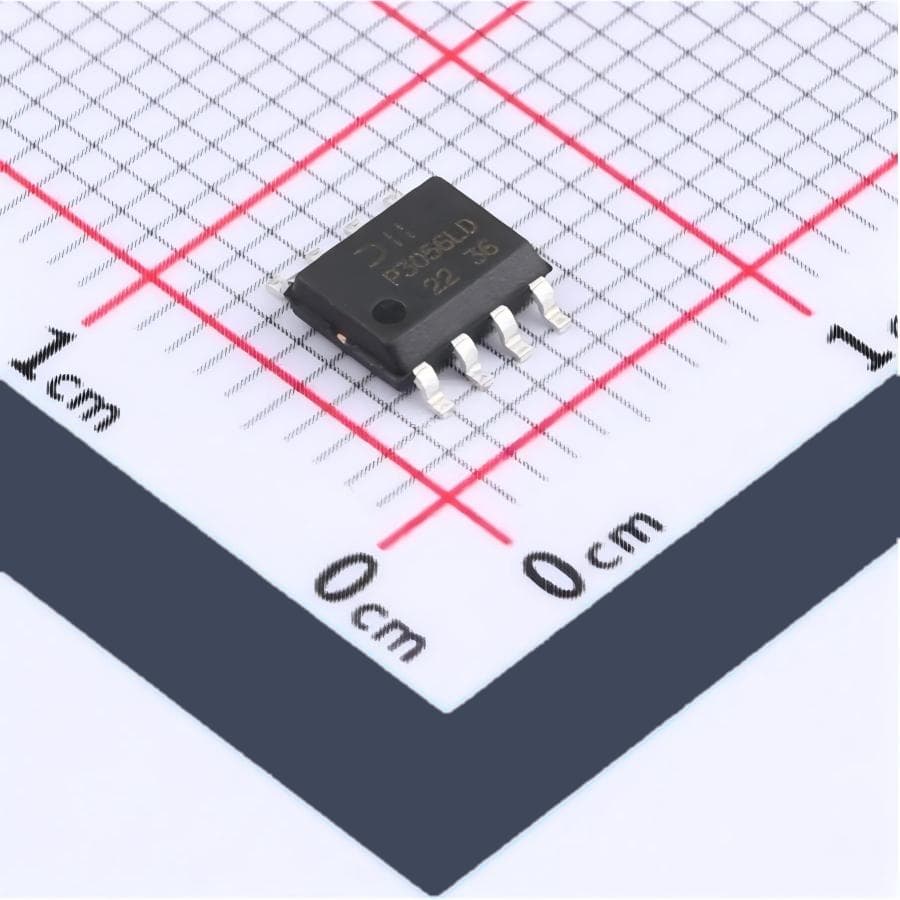

Image shown is a representation only
Manufacturer
Manufacturer No
DMP3056LSDQ-13
Quantity
2363
Availability
In Stock
Package
8-SOIC (0.154", 3.90mm Width)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2P-CH 30V 6.9A 8SO
Detailed Description
Mosfet Array 30V 6.9A (Ta) 2.5W Surface Mount 8-SO
DataSheet
Grade
Automotive
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
Part Status
Active
Power - Max
2.5W
Manufacturer
Diodes Incorporated
Configuration
2 P-Channel (Dual)
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
8-SOIC (0.154", 3.90mm Width)
Vgs(th) (Max) @ Id
2.1V @ 250µA
Base Product Number
DMP3056
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
45mOhm @ 6A, 10V
Supplier Device Package
8-SO
Gate Charge (Qg) (Max) @ Vgs
13.7nC @ 4.5V
Drain to Source Voltage (Vdss)
30V
Input Capacitance (Ciss) (Max) @ Vds
722pF @ 25V
Current - Continuous Drain (Id) @ 25°C
6.9A (Ta)
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Power - Max | 2.5W |
| Manufacturer | Diodes Incorporated |
| Configuration | 2 P-Channel (Dual) |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Base Product Number | DMP3056 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 45mOhm @ 6A, 10V |
| Supplier Device Package | 8-SO |
| Gate Charge (Qg) (Max) @ Vgs | 13.7nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 722pF @ 25V |
| Current - Continuous Drain (Id) @ 25°C | 6.9A (Ta) |
