Diodes Incorporated DMP2200UFCL-7

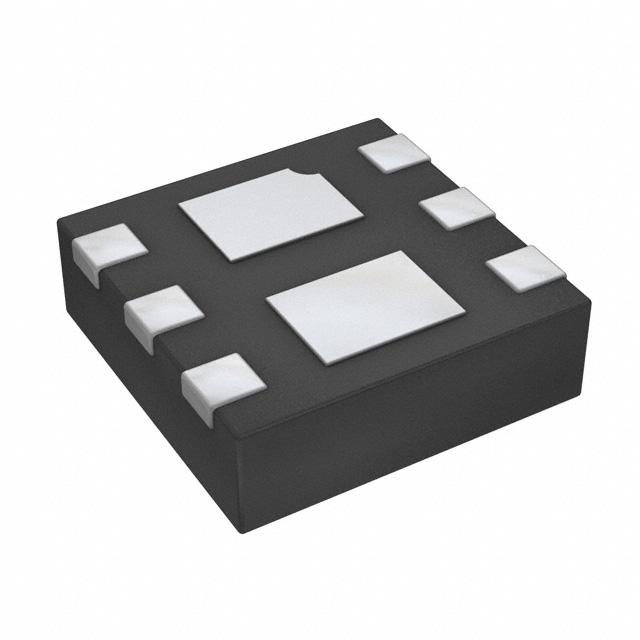

Image shown is a representation only
Manufacturer
Manufacturer No
DMP2200UFCL-7
Quantity
2905
Availability
In Stock
Package
6-UFDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2P-CH 20V 1.7A 6UDFN
Detailed Description
Mosfet Array 20V 1.7A 660mW Surface Mount U-DFN1616-6 (Type F)
DataSheet
Grade
Automotive
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
Part Status
Active
Power - Max
660mW
Manufacturer
Diodes Incorporated
Configuration
2 P-Channel (Dual)
Mounting Type
Surface Mount
Qualification
AEC-Q101
Package / Case
6-UFDFN Exposed Pad
Vgs(th) (Max) @ Id
1.2V @ 250µA
Base Product Number
DMP2200
Operating Temperature
-55°C ~ 150°C (TJ)
Rds On (Max) @ Id, Vgs
200mOhm @ 2A, 4.5V
Supplier Device Package
U-DFN1616-6 (Type F)
Gate Charge (Qg) (Max) @ Vgs
2.2nC @ 4.5V
Drain to Source Voltage (Vdss)
20V
Input Capacitance (Ciss) (Max) @ Vds
184pF @ 10V
Current - Continuous Drain (Id) @ 25°C
1.7A
| Attribute | Value |
|---|---|
| Grade | Automotive |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Power - Max | 660mW |
| Manufacturer | Diodes Incorporated |
| Configuration | 2 P-Channel (Dual) |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q101 |
| Package / Case | 6-UFDFN Exposed Pad |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Base Product Number | DMP2200 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 2A, 4.5V |
| Supplier Device Package | U-DFN1616-6 (Type F) |
| Gate Charge (Qg) (Max) @ Vgs | 2.2nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 184pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 1.7A |
