Step1: Product

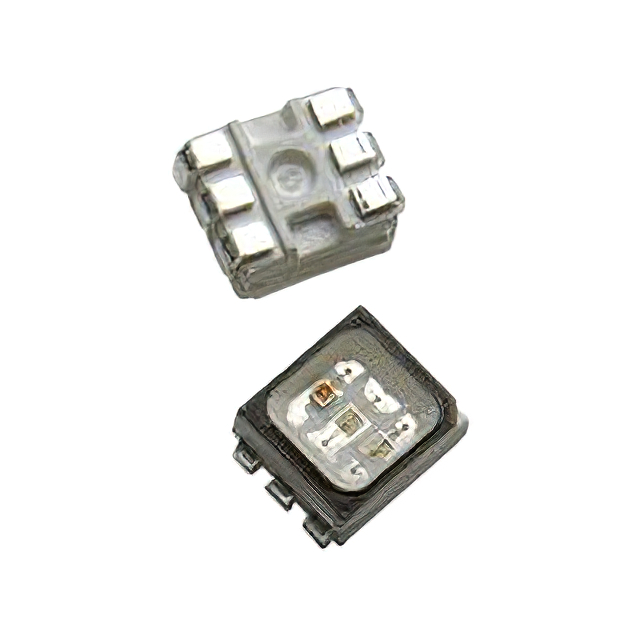

Broadcom Limited ASMT-YTC7-0AA02
Image shown is a representation only
Manufacturer
Manufacturer No
ASMT-YTC7-0AA02
Quantity
79
Availability
In Stock
Package
6-SMD, J-Lead
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED RGB DIFFUSED 6PLCC SMD
Detailed Description
Red, Green, Blue (RGB) 623nm Red, 529nm Green, 469nm Blue LED Indication - Discrete 2.1V Red, 3.1V Green, 3.1V Blue 6-SMD, J-Lead
DataSheet
Mfr
Broadcom Limited
Color
Red, Green, Blue (RGB)
Lens Size
2.30mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Style
Square with Flat Top
Part Status
Active
Height (Max)
2.00mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
110°
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
6-SMD, J-Lead
Size / Dimension
3.00mm L x 2.80mm W
Lens Transparency
Diffused
Wavelength - Peak
630nm Red, 522nm Green, 465nm Blue
Base Product Number
ASMT-YTC7
Millicandela Rating
330mcd Red, 840mcd Green, 160mcd Blue
Wavelength - Dominant
623nm Red, 529nm Green, 469nm Blue
Supplier Device Package
6-PLCC
Voltage - Forward (Vf) (Typ)
2.1V Red, 3.1V Green, 3.1V Blue
| Attribute | Value |
|---|---|
| Mfr | Broadcom Limited |
| Color | Red, Green, Blue (RGB) |
| Lens Size | 2.30mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Style | Square with Flat Top |
| Part Status | Active |
| Height (Max) | 2.00mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 110° |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension | 3.00mm L x 2.80mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 630nm Red, 522nm Green, 465nm Blue |
| Base Product Number | ASMT-YTC7 |
| Millicandela Rating | 330mcd Red, 840mcd Green, 160mcd Blue |
| Wavelength - Dominant | 623nm Red, 529nm Green, 469nm Blue |
| Supplier Device Package | 6-PLCC |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.1V Green, 3.1V Blue |
