Step1: Product
Broadcom Limited ASMT-RJ45-AQ502

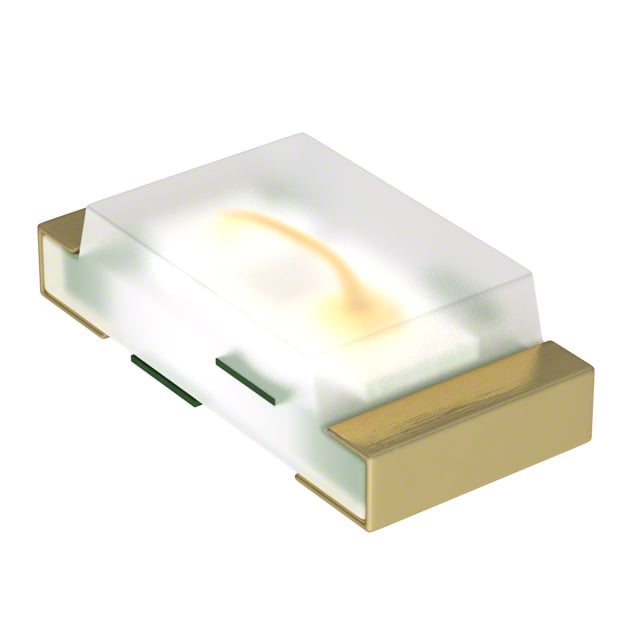

Image shown is a representation only
Manufacturer
Manufacturer No
ASMT-RJ45-AQ502
Quantity
500
Availability
In Stock
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED ORANGE DIFFUSED 0603 SMD
Detailed Description
Orange 605nm LED Indication - Discrete 2V 0603 (1608 Metric)
DataSheet
Mfr
Broadcom Limited
Color
Orange
Lens Size
1.10mm x 0.80mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Color
White
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.55mm
Configuration
Standard
Mounting Type
Surface Mount
Viewing Angle
145°
Current - Test
20mA
Package / Case
0603 (1608 Metric)
Size / Dimension
1.60mm L x 0.80mm W
Lens Transparency
Diffused
Wavelength - Peak
612nm
Base Product Number
ASMT-RJ
Millicandela Rating
130mcd
Wavelength - Dominant
605nm
Supplier Device Package
0603
Voltage - Forward (Vf) (Typ)
2V
| Attribute | Value |
|---|---|
| Mfr | Broadcom Limited |
| Color | Orange |
| Lens Size | 1.10mm x 0.80mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.55mm |
| Configuration | Standard |
| Mounting Type | Surface Mount |
| Viewing Angle | 145° |
| Current - Test | 20mA |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 612nm |
| Base Product Number | ASMT-RJ |
| Millicandela Rating | 130mcd |
| Wavelength - Dominant | 605nm |
| Supplier Device Package | 0603 |
| Voltage - Forward (Vf) (Typ) | 2V |
