Step1: Product

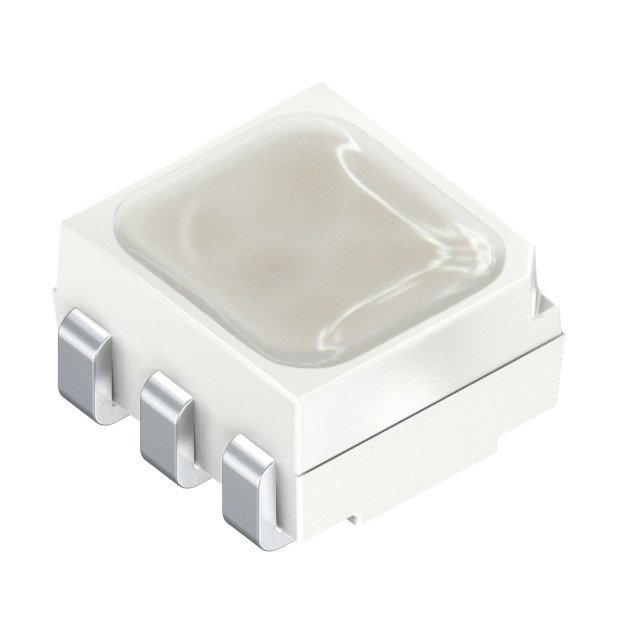

ams-OSRAM USA INC. LRTBGWSR-4U4V-JW+8A8B-D8-3S4U-7Z
Image shown is a representation only
Manufacturer
Manufacturer No
LRTBGWSR-4U4V-JW+8A8B-D8-3S4U-7Z
Quantity
86
Availability
In Stock
Package
6-PLCC
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LRTBGWSR-4U4V-JW+8A8B-D8-3S4U-7Z
Detailed Description
Red, Green, Blue (RGB) 626nm Red, 528nm Green, 465nm Blue LED Indication - Discrete 2.15V Red, 2.65V Green, 2.85V Blue 6-PLCC
DataSheet
Mfr
ams-OSRAM USA INC.
Color
Red, Green, Blue (RGB)
Grade
Automotive
Series
OSIRE® E3635
Lens Size
2.90mm x 2.60mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Color
Tinted
Lens Style
Oval with Flat Top
Part Status
Active
Height (Max)
2.10mm
Configuration
Independent
Mounting Type
Surface Mount
Qualification
AEC-Q102
Viewing Angle
120°
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
6-PLCC
Size / Dimension
3.30mm L x 3.00mm W
Lens Transparency
Diffused
Wavelength - Peak
632nm Red, 523nm Green, 455nm Blue
Millicandela Rating
875mcd Red, 2195mcd Green, 467mcd Blue
Wavelength - Dominant
626nm Red, 528nm Green, 465nm Blue
Supplier Device Package
6-PLCC
Voltage - Forward (Vf) (Typ)
2.15V Red, 2.65V Green, 2.85V Blue
| Attribute | Value |
|---|---|
| Mfr | ams-OSRAM USA INC. |
| Color | Red, Green, Blue (RGB) |
| Grade | Automotive |
| Series | OSIRE® E3635 |
| Lens Size | 2.90mm x 2.60mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Color | Tinted |
| Lens Style | Oval with Flat Top |
| Part Status | Active |
| Height (Max) | 2.10mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Qualification | AEC-Q102 |
| Viewing Angle | 120° |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 6-PLCC |
| Size / Dimension | 3.30mm L x 3.00mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 632nm Red, 523nm Green, 455nm Blue |
| Millicandela Rating | 875mcd Red, 2195mcd Green, 467mcd Blue |
| Wavelength - Dominant | 626nm Red, 528nm Green, 465nm Blue |
| Supplier Device Package | 6-PLCC |
| Voltage - Forward (Vf) (Typ) | 2.15V Red, 2.65V Green, 2.85V Blue |
