Step1: Product

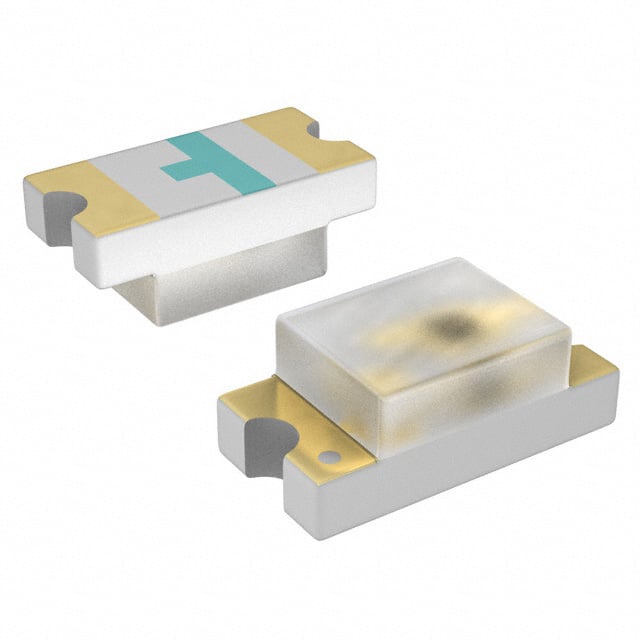

ams-OSRAM USA INC. LS R976-NR-1-0-20-R18
Image shown is a representation only
Manufacturer
Manufacturer No
LS R976-NR-1-0-20-R18
Quantity
19,490
Availability
In Stock
Package
0805 (2012 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED RED DIFFUSED 0805 SMD
Detailed Description
Red 633nm LED Indication - Discrete 2V 0805 (2012 Metric)
Datasheet
Mfr
ams-OSRAM USA INC.
Color
Red
Series
CHIPLED 0805
Lens Size
1.30mm x 1.25mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Color
White
Lens Style
Rectangle with Flat Top
Height (Max)
0.90mm
Configuration
Standard
Mounting Type
Surface Mount
Viewing Angle
160°
Current - Test
20mA
Package / Case
0805 (2012 Metric)
Size / Dimension
2.00mm L x 1.25mm W
Lens Transparency
Diffused
Wavelength - Peak
645nm
Base Product Number
LSR976
Millicandela Rating
104mcd
Wavelength - Dominant
633nm
Supplier Device Package
0805
Voltage - Forward (Vf) (Typ)
2V
| Attribute | Value |
|---|---|
| Mfr | ams-OSRAM USA INC. |
| Color | Red |
| Series | CHIPLED 0805 |
| Lens Size | 1.30mm x 1.25mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Height (Max) | 0.90mm |
| Configuration | Standard |
| Mounting Type | Surface Mount |
| Viewing Angle | 160° |
| Current - Test | 20mA |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 645nm |
| Base Product Number | LSR976 |
| Millicandela Rating | 104mcd |
| Wavelength - Dominant | 633nm |
| Supplier Device Package | 0805 |
| Voltage - Forward (Vf) (Typ) | 2V |
