Step1: Product
ams-OSRAM USA INC. KRTBLSLPS1.32-VUVX-EQ+BTBV-D8+TXUV-L1-B

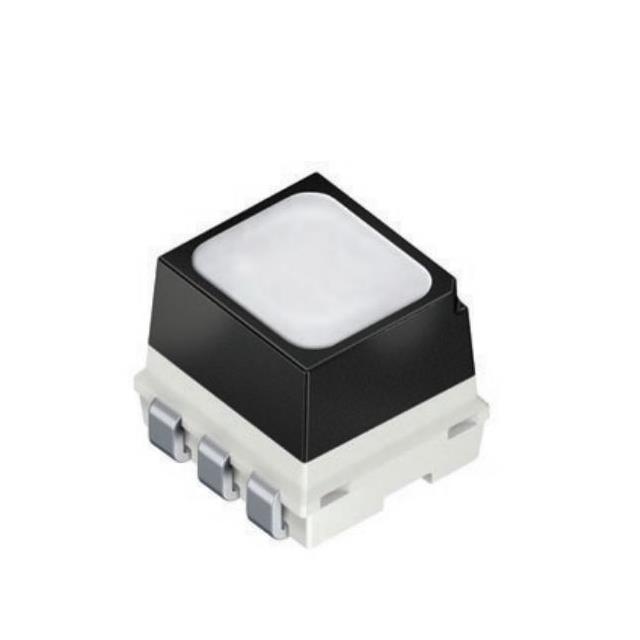

Image shown is a representation only
Manufacturer
Manufacturer No
KRTBLSLPS1.32-VUVX-EQ+BTBV-D8+TXUV-L1-B
Quantity
4363
Availability
In Stock
Package
6-SMD, J-Lead
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED RGB DIFFUSED 6PLCC SMD
Detailed Description
Red, Green, Blue (RGB) 621nm Red, 532nm Green, 467nm Blue LED Indication - Discrete 2.05V Red, 2.65V Green, 2.85V Blue 6-SMD, J-Lead
DataSheet
Mfr
ams-OSRAM USA INC.
Color
Red, Green, Blue (RGB)
Series
DISPLIX® P3333
Lens Size
2.80mm x 2.60mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
2.24mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
6-SMD, J-Lead
Size / Dimension
3.30mm L x 3.10mm W
Lens Transparency
Diffused
Wavelength - Peak
634nm Red, 526nm Green, 462nm Blue
Millicandela Rating
1025mcd Red, 2351mcd Green, 543.5mcd Blue
Wavelength - Dominant
621nm Red, 532nm Green, 467nm Blue
Supplier Device Package
6-PLCC
Voltage - Forward (Vf) (Typ)
2.05V Red, 2.65V Green, 2.85V Blue
| Attribute | Value |
|---|---|
| Mfr | ams-OSRAM USA INC. |
| Color | Red, Green, Blue (RGB) |
| Series | DISPLIX® P3333 |
| Lens Size | 2.80mm x 2.60mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 2.24mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension | 3.30mm L x 3.10mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 634nm Red, 526nm Green, 462nm Blue |
| Millicandela Rating | 1025mcd Red, 2351mcd Green, 543.5mcd Blue |
| Wavelength - Dominant | 621nm Red, 532nm Green, 467nm Blue |
| Supplier Device Package | 6-PLCC |
| Voltage - Forward (Vf) (Typ) | 2.05V Red, 2.65V Green, 2.85V Blue |
