Step1: Product

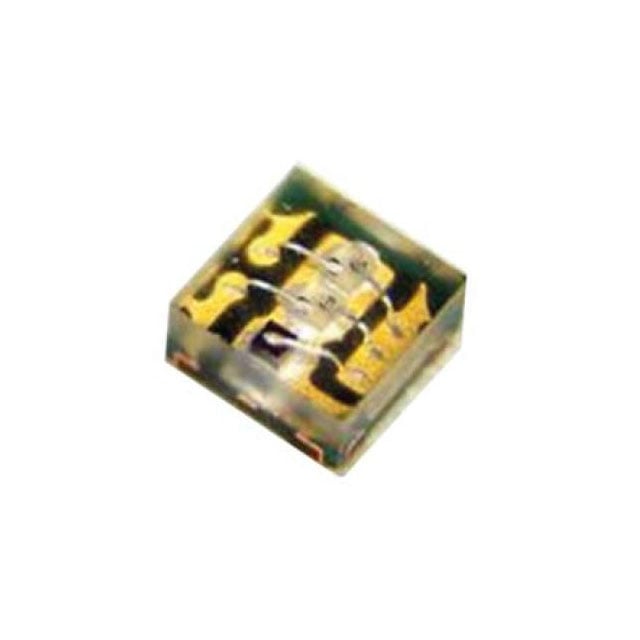

ams-OSRAM USA INC. LRTBR48G-P9Q7-1+R7S5-26+NP-68-R33-ZB
Image shown is a representation only
Manufacturer
Manufacturer No
LRTBR48G-P9Q7-1+R7S5-26+NP-68-R33-ZB
Quantity
3,415
Availability
In Stock
Package
0404 (1010 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED RGB 4SMD
Detailed Description
Red, Green, Blue (RGB) 623nm Red, 530nm Green, 471nm Blue LED Indication - Discrete 1.95V Red, 2.7V Green, 2.7V Blue 0404 (1010 Metric)
Datasheet
Mfr
ams-OSRAM USA INC.
Color
Red, Green, Blue (RGB)
Series
Multi CHIPLED
Lens Size
1.00mm
Packaging
Tape & Reel (TR); Cut Tape (CT)
Lens Style
Square with Flat Top
Height (Max)
0.75mm
Configuration
Common Anode
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
10mA Red, 5mA Green, 5mA Blue
Package / Case
0404 (1010 Metric)
Size / Dimension
1.00mm L x 1.00mm W
Wavelength - Peak
632nm Red, 523nm Green, 455nm Blue
Base Product Number
LRTBR48
Wavelength - Dominant
623nm Red, 530nm Green, 471nm Blue
Supplier Device Package
4-SMD
Voltage - Forward (Vf) (Typ)
1.95V Red, 2.7V Green, 2.7V Blue
| Attribute | Value |
|---|---|
| Mfr | ams-OSRAM USA INC. |
| Color | Red, Green, Blue (RGB) |
| Series | Multi CHIPLED |
| Lens Size | 1.00mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Lens Style | Square with Flat Top |
| Height (Max) | 0.75mm |
| Configuration | Common Anode |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 10mA Red, 5mA Green, 5mA Blue |
| Package / Case | 0404 (1010 Metric) |
| Size / Dimension | 1.00mm L x 1.00mm W |
| Wavelength - Peak | 632nm Red, 523nm Green, 455nm Blue |
| Base Product Number | LRTBR48 |
| Wavelength - Dominant | 623nm Red, 530nm Green, 471nm Blue |
| Supplier Device Package | 4-SMD |
| Voltage - Forward (Vf) (Typ) | 1.95V Red, 2.7V Green, 2.7V Blue |
