Step1: Product
ams-OSRAM USA INC. LRTBR98G-R5T-1+S7T7-35+PQ-25-20-R18-ZB

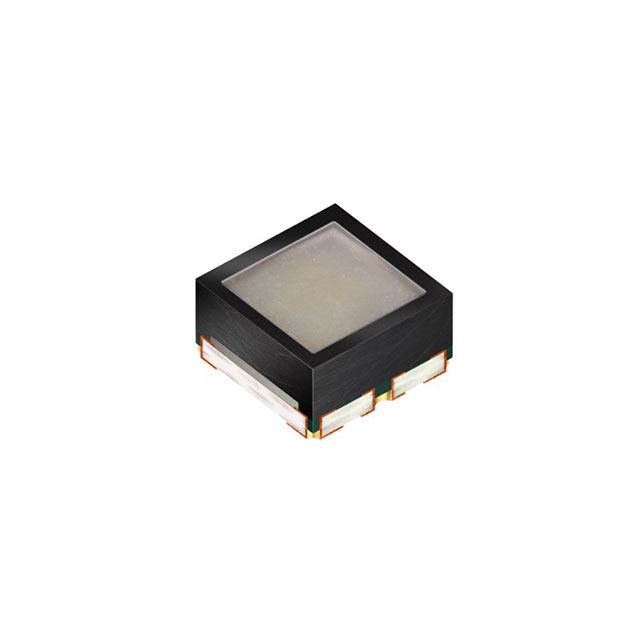

Image shown is a representation only
Manufacturer
Manufacturer No
LRTBR98G-R5T-1+S7T7-35+PQ-25-20-R18-ZB
Package
6-SMD, No Lead
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED RGB DIFFUSED SMD CHIPLED SMD
Detailed Description
Red, Green, Blue (RGB) 621nm Red, 528nm Green, 470nm Blue LED Indication - Discrete 2.05V Red, 3.2V Green, 3.2V Blue 6-SMD, No Lead
DataSheet
Mfr
ams-OSRAM USA INC.
Color
Red, Green, Blue (RGB)
Series
Multi CHIPLED
Lens Size
1.60mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Style
Square with Flat Top
Part Status
Active
Height (Max)
1.00mm
Configuration
Independent
Mounting Type
Surface Mount
Viewing Angle
120°
Current - Test
20mA Red, 20mA Green, 20mA Blue
Package / Case
6-SMD, No Lead
Size / Dimension
1.60mm L x 1.60mm W
Lens Transparency
Diffused
Wavelength - Peak
632nm Red, 523nm Green, 465nm Blue
Base Product Number
LRTBR98
Millicandela Rating
288mcd Red, 392mcd Green, 79mcd Blue
Wavelength - Dominant
621nm Red, 528nm Green, 470nm Blue
Supplier Device Package
SMT CHIPLED
Voltage - Forward (Vf) (Typ)
2.05V Red, 3.2V Green, 3.2V Blue
| Attribute | Value |
|---|---|
| Mfr | ams-OSRAM USA INC. |
| Color | Red, Green, Blue (RGB) |
| Series | Multi CHIPLED |
| Lens Size | 1.60mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Style | Square with Flat Top |
| Part Status | Active |
| Height (Max) | 1.00mm |
| Configuration | Independent |
| Mounting Type | Surface Mount |
| Viewing Angle | 120° |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension | 1.60mm L x 1.60mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 632nm Red, 523nm Green, 465nm Blue |
| Base Product Number | LRTBR98 |
| Millicandela Rating | 288mcd Red, 392mcd Green, 79mcd Blue |
| Wavelength - Dominant | 621nm Red, 528nm Green, 470nm Blue |
| Supplier Device Package | SMT CHIPLED |
| Voltage - Forward (Vf) (Typ) | 2.05V Red, 3.2V Green, 3.2V Blue |
