Step1: Product
Amphenol ICC (Commercial Products) L717SDE09PVF

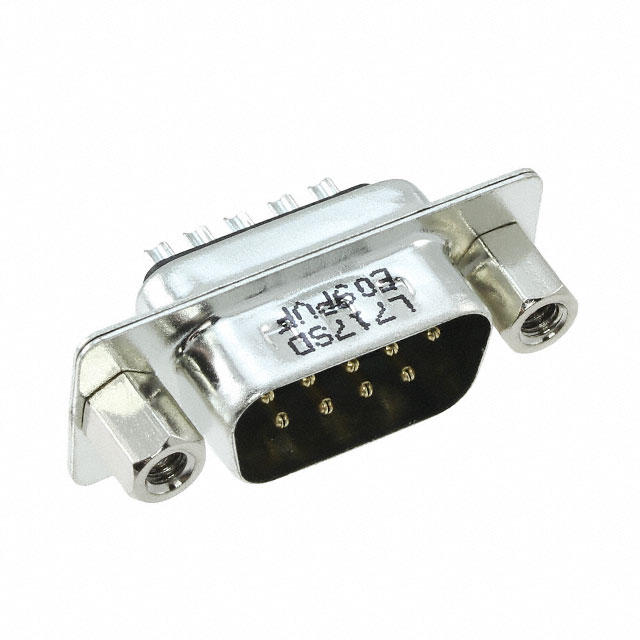

Image shown is a representation only
Manufacturer
Manufacturer No
L717SDE09PVF
Quantity
10
Availability
In Stock
Packaging
Tray
Description
CONN D-SUB PLUG 9POS SOLDER CUP
Detailed Description
9 Position D-Sub Plug, Male Pins Connector
DataSheet
Mfr
Amphenol ICC (Commercial Products)
Color
Black
Series
SD
Features
Grounding Indents
Packaging
Tray
Wire Gauge
20 AWG
Part Status
Active
Termination
Solder Cup
Contact Form
Stamped
Contact Type
Signal
Mounting Type
Free Hanging (In-Line)
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (4-40)
Number of Rows
2
Voltage Rating
250V
Connector Style
D-Sub
Contact Material
Brass
Base Product Number
L717SDE09
Dielectric Material
Thermoplastic, Glass Filled
Number of Positions
9
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 105°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Color | Black |
| Series | SD |
| Features | Grounding Indents |
| Packaging | Tray |
| Wire Gauge | 20 AWG |
| Part Status | Active |
| Termination | Solder Cup |
| Contact Form | Stamped |
| Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Number of Rows | 2 |
| Voltage Rating | 250V |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Base Product Number | L717SDE09 |
| Dielectric Material | Thermoplastic, Glass Filled |
| Number of Positions | 9 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 105°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) |
