Step1: Product

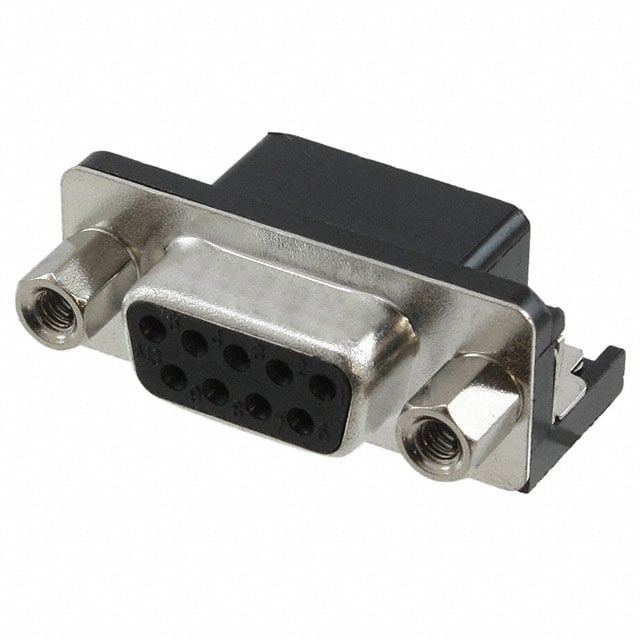

Amphenol ICC (Commercial Products) L77SDE09SA4CH4F
Image shown is a representation only
Manufacturer
Manufacturer No
L77SDE09SA4CH4F
Quantity
201
Availability
In Stock
Packaging
Tray
Description
CONN D-SUB RCPT 9POS R/A SOLDER
Detailed Description
9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
Mfr
Amphenol ICC (Commercial Products)
Color
Black
Series
SD
Features
Board Lock
Packaging
Tray
Termination
Solder
Contact Form
Stamped
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (4-40)
Number of Rows
2
Voltage Rating
250V
Backset Spacing
0.318" (8.08mm)
Connector Style
D-Sub
Contact Material
Phosphor Bronze
Base Product Number
L77SDE09
Dielectric Material
Thermoplastic, Glass Filled
Number of Positions
9
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Color | Black |
| Series | SD |
| Features | Board Lock |
| Packaging | Tray |
| Termination | Solder |
| Contact Form | Stamped |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Number of Rows | 2 |
| Voltage Rating | 250V |
| Backset Spacing | 0.318" (8.08mm) |
| Connector Style | D-Sub |
| Contact Material | Phosphor Bronze |
| Base Product Number | L77SDE09 |
| Dielectric Material | Thermoplastic, Glass Filled |
| Number of Positions | 9 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) |
