Step1: Product
Amphenol ICC (Commercial Products) L717SDC37P1ACH4F

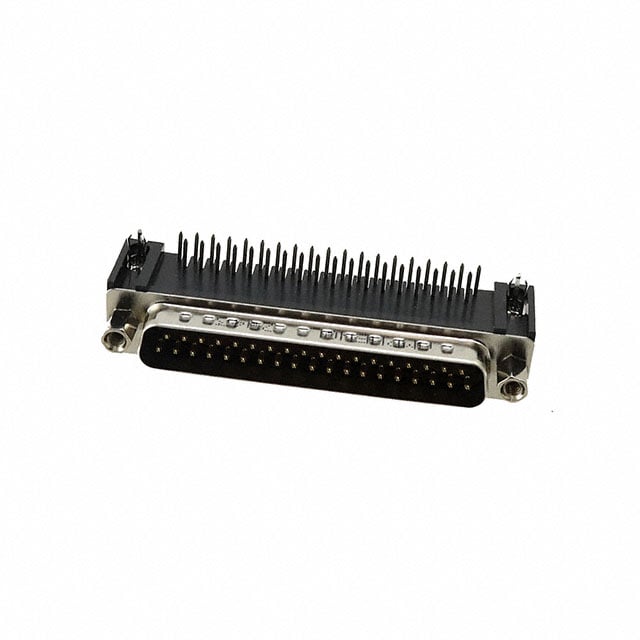

Image shown is a representation only
Manufacturer
Manufacturer No
L717SDC37P1ACH4F
Quantity
33
Availability
In Stock
Packaging
Tray
Description
CONN D-SUB PLUG 37POS R/A SOLDER
Detailed Description
37 Position D-Sub Plug, Male Pins Connector
Datasheet
Mfr
Amphenol ICC (Commercial Products)
Color
Black
Series
SD
Features
Board Lock, Grounding Indents
Packaging
Tray
Termination
Solder
Contact Form
Stamped
Contact Type
Signal
Mounting Type
Through Hole, Right Angle
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Mating Side, Female Screwlock (4-40)
Number of Rows
2
Voltage Rating
250V
Backset Spacing
0.406" (10.30mm)
Connector Style
D-Sub
Contact Material
Brass
Base Product Number
L717SDC37
Dielectric Material
Thermoplastic, Glass Filled
Number of Positions
37
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
4 (DC, C)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Color | Black |
| Series | SD |
| Features | Board Lock, Grounding Indents |
| Packaging | Tray |
| Termination | Solder |
| Contact Form | Stamped |
| Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Number of Rows | 2 |
| Voltage Rating | 250V |
| Backset Spacing | 0.406" (10.30mm) |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Base Product Number | L717SDC37 |
| Dielectric Material | Thermoplastic, Glass Filled |
| Number of Positions | 37 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 4 (DC, C) |
