Step1: Product

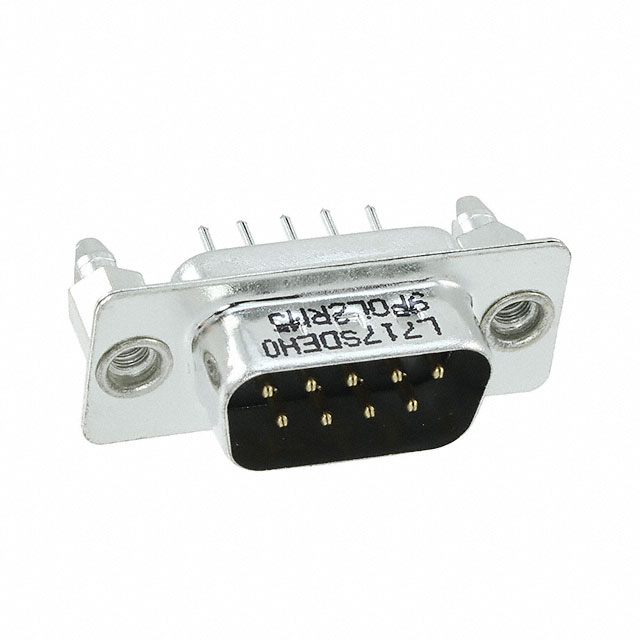

Amphenol ICC (Commercial Products) L717SDEH09POL2RM5
Image shown is a representation only
Manufacturer
Manufacturer No
L717SDEH09POL2RM5
Quantity
39
Availability
In Stock
Packaging
Tray
Description
CONN D-SUB PLUG 9POS VERT SOLDER
Detailed Description
9 Position D-Sub Plug, Male Pins Connector
Datasheet
Mfr
Amphenol ICC (Commercial Products)
Color
Black
Series
SD
Features
Board Lock, Grounding Indents
Packaging
Tray
Termination
Solder
Contact Form
Stamped
Contact Type
Signal
Mounting Type
Through Hole
Connector Type
Plug, Male Pins
Contact Finish
Gold
Flange Feature
Board Side (4-40)
Number of Rows
2
Voltage Rating
250V
Connector Style
D-Sub
Contact Material
Brass
Base Product Number
L717SDEH09
Dielectric Material
Thermoplastic, Glass Filled
Number of Positions
9
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 125°C
Shell Material, Finish
Steel, Tin Plated
Contact Finish Thickness
Flash
Material Flammability Rating
UL94 V-0
Shell Size, Connector Layout
1 (DE, E)
| Attribute | Value |
|---|---|
| Mfr | Amphenol ICC (Commercial Products) |
| Color | Black |
| Series | SD |
| Features | Board Lock, Grounding Indents |
| Packaging | Tray |
| Termination | Solder |
| Contact Form | Stamped |
| Contact Type | Signal |
| Mounting Type | Through Hole |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Flange Feature | Board Side (4-40) |
| Number of Rows | 2 |
| Voltage Rating | 250V |
| Connector Style | D-Sub |
| Contact Material | Brass |
| Base Product Number | L717SDEH09 |
| Dielectric Material | Thermoplastic, Glass Filled |
| Number of Positions | 9 |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash |
| Material Flammability Rating | UL94 V-0 |
| Shell Size, Connector Layout | 1 (DE, E) |
