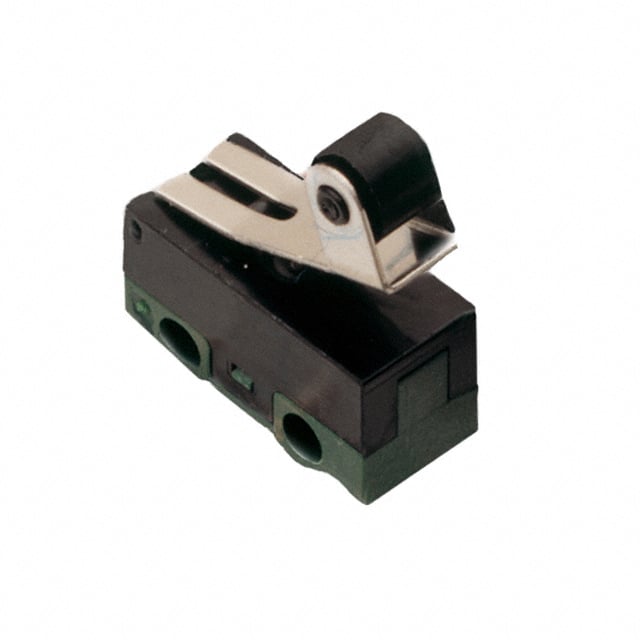

ZF Electronics DG23-B3RA
Image shown is a representation only
Manufacturer
Manufacturer No
DG23-B3RA
Packaging
Bulk
Description
SWITCH SNAP ACT SPDT 0.05A 30V
Detailed Description
Switch SPDT Through Hole, Right Angle
DataSheet
Series
DG
Circuit
SPDT
Packaging
Bulk
Pretravel
0.060" (1.5mm)
Overtravel
0.022" (0.55mm)
Part Status
Obsolete
Manufacturer
ZF Electronics
Actuator Type
Lever, Roller
Mounting Type
Through Hole, Right Angle
Electrical Life
200,000 Cycles
Mechanical Life
1,000,000 Cycles
Operating Force
60gf
Switch Function
On-Mom
Termination Style
PC Pin
Ingress Protection
IP40
Operating Position
0.488" (12.4mm)
Base Product Number
DG23
Differential Travel
0.020" (0.5mm)
Voltage Rating - DC
30 V
Current Rating (Amps)
50mA (DC)
Operating Temperature
-25°C ~ 85°C
| Attribute | Value |
|---|---|
| Series | DG |
| Circuit | SPDT |
| Packaging | Bulk |
| Pretravel | 0.060" (1.5mm) |
| Overtravel | 0.022" (0.55mm) |
| Part Status | Obsolete |
| Manufacturer | ZF Electronics |
| Actuator Type | Lever, Roller |
| Mounting Type | Through Hole, Right Angle |
| Electrical Life | 200,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 60gf |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Ingress Protection | IP40 |
| Operating Position | 0.488" (12.4mm) |
| Base Product Number | DG23 |
| Differential Travel | 0.020" (0.5mm) |
| Voltage Rating - DC | 30 V |
| Current Rating (Amps) | 50mA (DC) |
| Operating Temperature | -25°C ~ 85°C |
