Step1: Product
ZF Electronics E14-01M

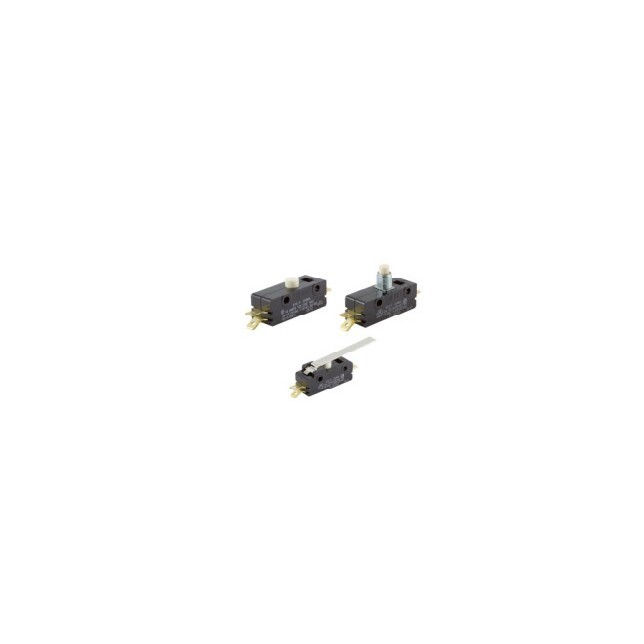

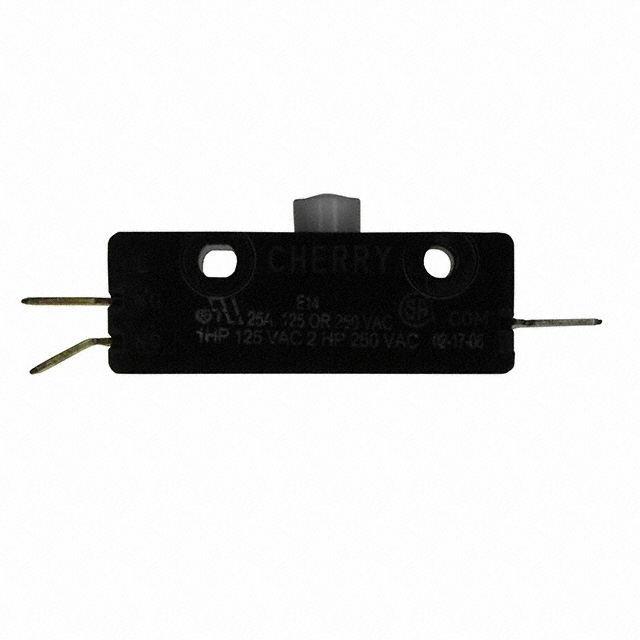

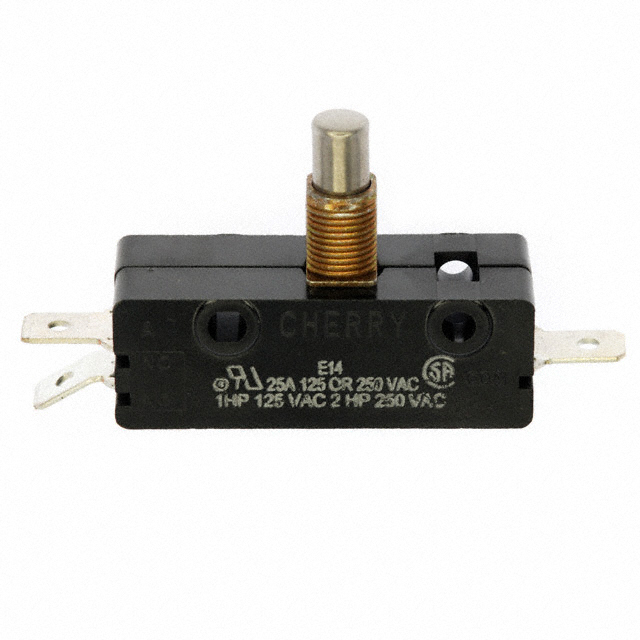

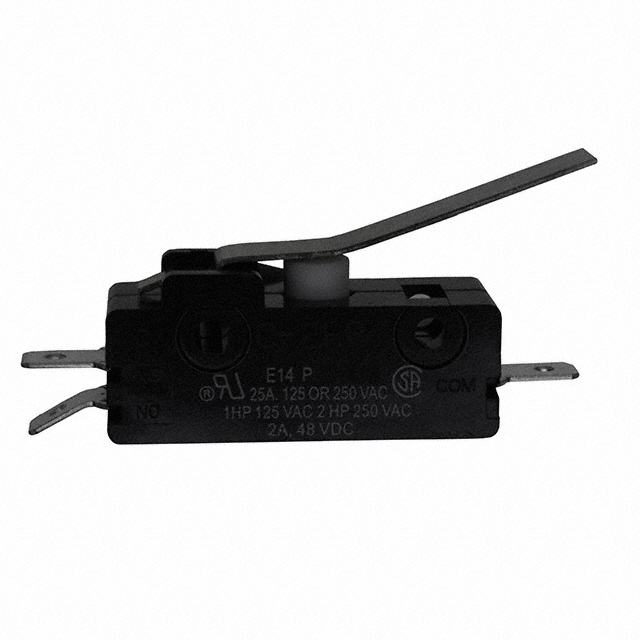

Image shown is a representation only
Manufacturer
Manufacturer No
E14-01M
Packaging
Box
Description
SWITCH SNAP ACT SPST-NO 25A 125V
Detailed Description
Switch SPST-NO Chassis Mount
Series
E
Circuit
SPST-NO
Packaging
Box
Pretravel
0.100" (2.54mm)
Overtravel
0.168" (4.27mm)
Part Status
Obsolete
Manufacturer
ZF Electronics
Actuator Type
Overtravel Plunger
Mounting Type
Chassis Mount
Electrical Life
6,000 Cycles
Operating Force
850gf
Switch Function
Off-Mom
Termination Style
Quick Connect - 0.250" (6.3mm)
Operating Position
0.775" (19.69mm)
Differential Travel
0.015" (0.38mm)
Voltage Rating - AC
125 V
Voltage Rating - DC
48 V
Current Rating (Amps)
25A (AC), 2A (DC)
Operating Temperature
-40°C ~ 105°C
| Attribute | Value |
|---|---|
| Series | E |
| Circuit | SPST-NO |
| Packaging | Box |
| Pretravel | 0.100" (2.54mm) |
| Overtravel | 0.168" (4.27mm) |
| Part Status | Obsolete |
| Manufacturer | ZF Electronics |
| Actuator Type | Overtravel Plunger |
| Mounting Type | Chassis Mount |
| Electrical Life | 6,000 Cycles |
| Operating Force | 850gf |
| Switch Function | Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Operating Position | 0.775" (19.69mm) |
| Differential Travel | 0.015" (0.38mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 48 V |
| Current Rating (Amps) | 25A (AC), 2A (DC) |
| Operating Temperature | -40°C ~ 105°C |
