Step1: Product
ZF Electronics E14-00H

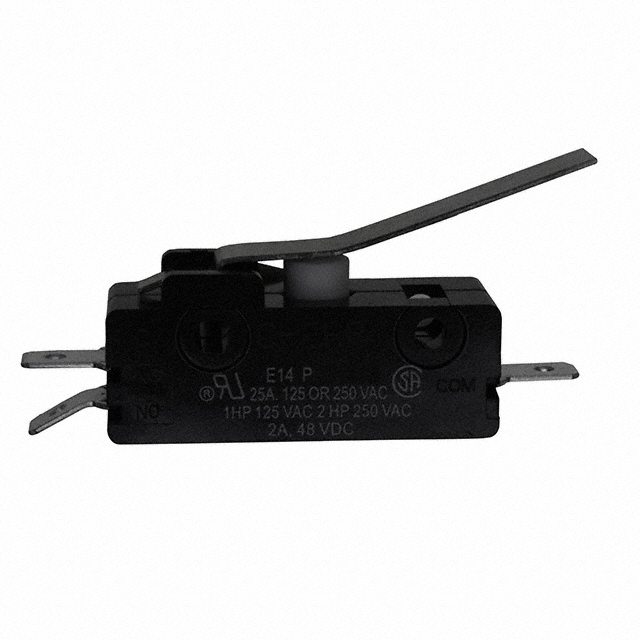

Image shown is a representation only
Manufacturer
Manufacturer No
E14-00H
Packaging
Bulk
Description
SWITCH SNAP ACTION SPDT 25A 125V
Detailed Description
Switch SPDT Chassis Mount
DataSheet
Series
E
Circuit
SPDT
Packaging
Bulk
Pretravel
0.310" (7.9mm)
Overtravel
0.105" (2.67mm)
Part Status
Active
Manufacturer
ZF Electronics
Actuator Type
Lever, Straight
Mounting Type
Chassis Mount
Electrical Life
6,000 Cycles
Operating Force
285gf
Switch Function
On-Mom
Termination Style
Quick Connect - 0.250" (6.3mm)
Operating Position
0.468" (11.9mm)
Differential Travel
0.050" (1.3mm)
Voltage Rating - AC
125 V
Voltage Rating - DC
48 V
Current Rating (Amps)
25A (AC), 2A (DC)
Operating Temperature
-40°C ~ 105°C
| Attribute | Value |
|---|---|
| Series | E |
| Circuit | SPDT |
| Packaging | Bulk |
| Pretravel | 0.310" (7.9mm) |
| Overtravel | 0.105" (2.67mm) |
| Part Status | Active |
| Manufacturer | ZF Electronics |
| Actuator Type | Lever, Straight |
| Mounting Type | Chassis Mount |
| Electrical Life | 6,000 Cycles |
| Operating Force | 285gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Operating Position | 0.468" (11.9mm) |
| Differential Travel | 0.050" (1.3mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 48 V |
| Current Rating (Amps) | 25A (AC), 2A (DC) |
| Operating Temperature | -40°C ~ 105°C |
