Step1: Product
ZF Electronics DC2C-A1RB

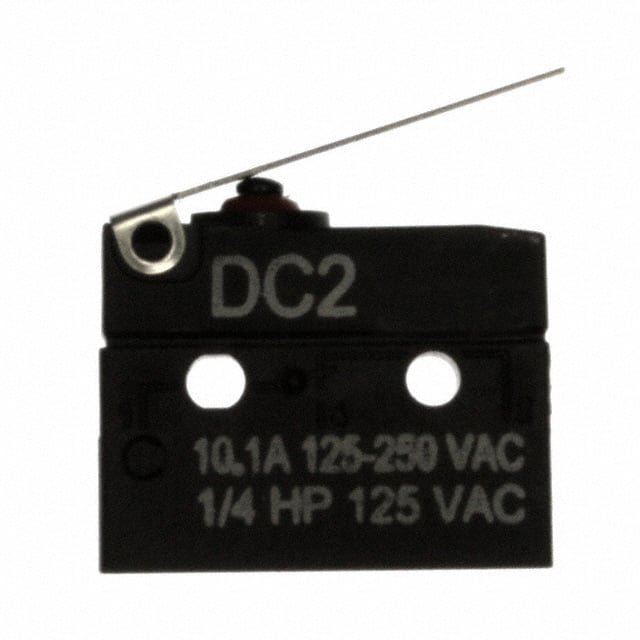

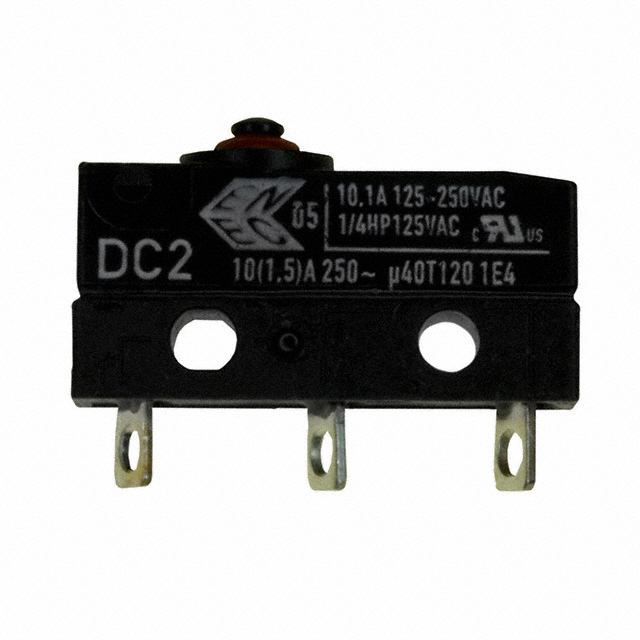

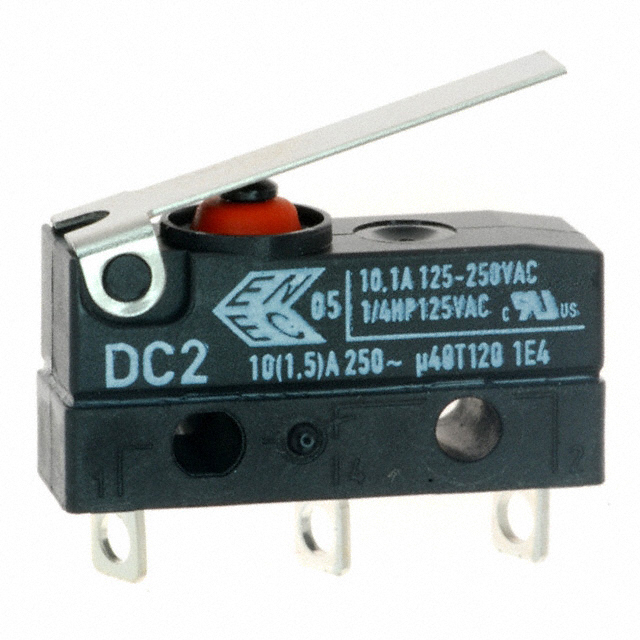

Image shown is a representation only
Manufacturer
Manufacturer No
DC2C-A1RB
Packaging
Box
Description
SWITCH SNAP ACTION SPDT 10A 125V
Detailed Description
Switch SPDT Chassis Mount
Series
DC
Circuit
SPDT
Packaging
Box
Pretravel
0.197" (5.0mm)
Overtravel
0.060" (1.5mm)
Part Status
Active
Manufacturer
ZF Electronics
Actuator Type
Lever, Roller
Mounting Type
Chassis Mount
Electrical Life
6,000 Cycles
Mechanical Life
1,000,000 Cycles
Operating Force
163gf
Switch Function
On-Mom
Termination Style
Solder Lug
Ingress Protection
IP67 - Dust Tight, Waterproof
Operating Position
0.622" (15.8mm)
Base Product Number
DC2C-A1
Differential Travel
0.031" (0.8mm)
Voltage Rating - AC
125 V
Current Rating (Amps)
10A (AC)
Operating Temperature
-40°C ~ 120°C
| Attribute | Value |
|---|---|
| Series | DC |
| Circuit | SPDT |
| Packaging | Box |
| Pretravel | 0.197" (5.0mm) |
| Overtravel | 0.060" (1.5mm) |
| Part Status | Active |
| Manufacturer | ZF Electronics |
| Actuator Type | Lever, Roller |
| Mounting Type | Chassis Mount |
| Electrical Life | 6,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 163gf |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Position | 0.622" (15.8mm) |
| Base Product Number | DC2C-A1 |
| Differential Travel | 0.031" (0.8mm) |
| Voltage Rating - AC | 125 V |
| Current Rating (Amps) | 10A (AC) |
| Operating Temperature | -40°C ~ 120°C |
