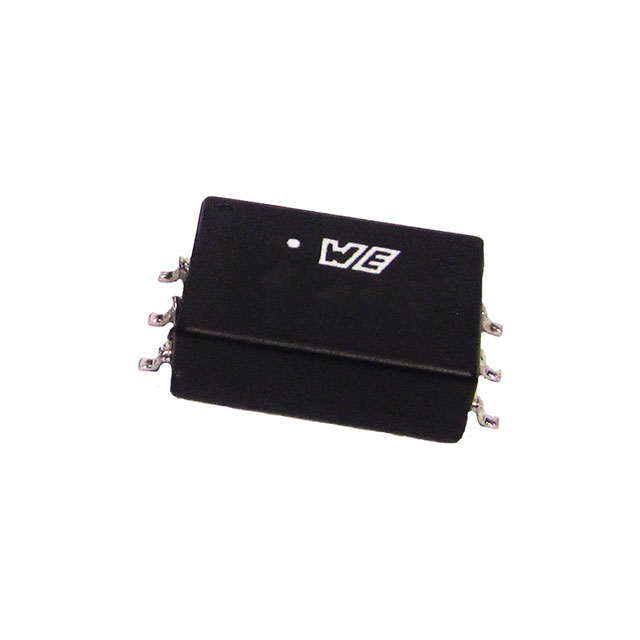

Würth Elektronik 750316854
Image shown is a representation only
Manufacturer
Manufacturer No
750316854
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
XFMR FWD P-P DC/DC CONV 200UH SM
Detailed Description
Forward, Push-Pull Converters For For DC/DC Converters SMPS Transformer 2500Vrms Isolation 420kHz Surface Mount
DataSheet
Type
For DC/DC Converters
Series
MID-PPTI
Footprint
0.581" L x 0.327" W (14.75mm x 8.30mm)
Frequency
420kHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
Forward, Push-Pull Converters
Manufacturer
Würth Elektronik
Mounting Type
Surface Mount
Intended Chipset
SN6505B
Size / Dimension
0.450" L x 0.327" W (11.43mm x 8.30mm)
Voltage - Primary
5V
Voltage - Isolation
2500Vrms
Chipset Manufacturer
Texas Instruments
Height - Seated (Max)
0.165" (4.20mm)
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
200µH @ 10kHz
| Attribute | Value |
|---|---|
| Type | For DC/DC Converters |
| Series | MID-PPTI |
| Footprint | 0.581" L x 0.327" W (14.75mm x 8.30mm) |
| Frequency | 420kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | Forward, Push-Pull Converters |
| Manufacturer | Würth Elektronik |
| Mounting Type | Surface Mount |
| Intended Chipset | SN6505B |
| Size / Dimension | 0.450" L x 0.327" W (11.43mm x 8.30mm) |
| Voltage - Primary | 5V |
| Voltage - Isolation | 2500Vrms |
| Chipset Manufacturer | Texas Instruments |
| Height - Seated (Max) | 0.165" (4.20mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 200µH @ 10kHz |
