Step1: Product

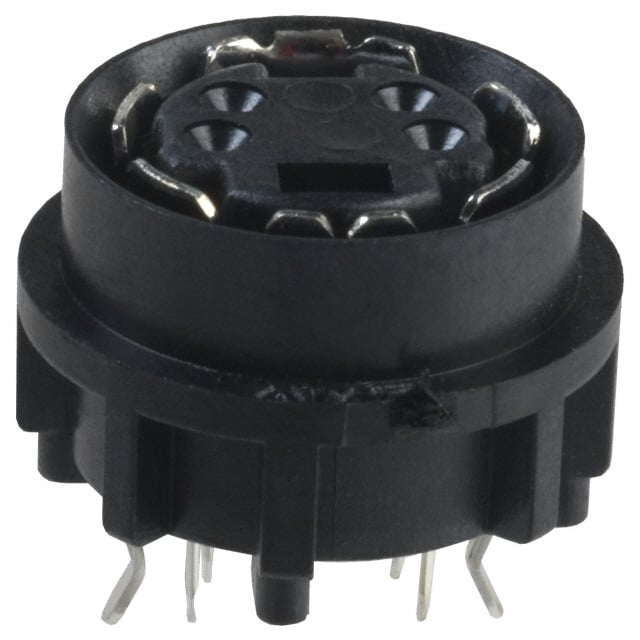

TE Connectivity AMP Connectors 750315-1
Image shown is a representation only
Manufacturer
Manufacturer No
750315-1
Packaging
Tube
Description
CONN RCPT FMALE MINI DIN 4P SLDR
Detailed Description
4 Position Circular Connector Receptacle, Female Sockets Solder
DataSheet
Mfr
TE Connectivity AMP Connectors
Features
Board Lock
Packaging
Tube
Orientation
Keyed
Part Status
Obsolete
Termination
Solder
Applications
Audio, Video
Mounting Type
Panel Mount, Through Hole
Connector Type
Receptacle, Female Sockets
Fastening Type
Push-Pull
Shell Material
Polyester
Voltage Rating
30VDC
Contact Material
Copper Alloy
Mounting Feature
Flange
Primary Material
Plastic
Base Product Number
750315
Number of Positions
4
Shell Size - Insert
Mini DIN
Current Rating (Amps)
1A
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Gold
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Mfr | TE Connectivity AMP Connectors |
| Features | Board Lock |
| Packaging | Tube |
| Orientation | Keyed |
| Part Status | Obsolete |
| Termination | Solder |
| Applications | Audio, Video |
| Mounting Type | Panel Mount, Through Hole |
| Connector Type | Receptacle, Female Sockets |
| Fastening Type | Push-Pull |
| Shell Material | Polyester |
| Voltage Rating | 30VDC |
| Contact Material | Copper Alloy |
| Mounting Feature | Flange |
| Primary Material | Plastic |
| Base Product Number | 750315 |
| Number of Positions | 4 |
| Shell Size - Insert | Mini DIN |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
