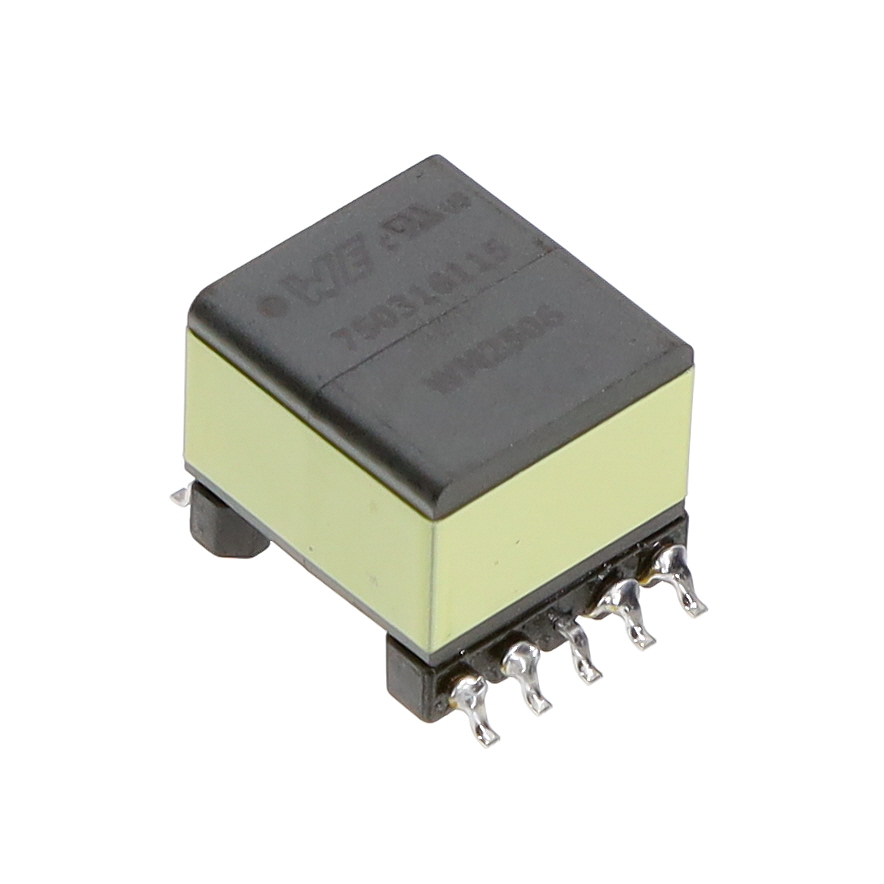

Würth Elektronik 750316115
Image shown is a representation only
Manufacturer
Manufacturer No
750316115
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CURFACE TRANSFORMER
Detailed Description
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 250kHz Surface Mount
DataSheet
Type
For DC/DC Converters
Footprint
0.699" L x 0.530" W (17.75mm x 13.46mm)
Frequency
250kHz
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Applications
Flyback Converters
Manufacturer
Würth Elektronik
Mounting Type
Surface Mount
Intended Chipset
LT4321, LT4295
Voltage - Primary
42 ~ 57V
Voltage - Auxiliary
12V @ 10mA
Voltage - Isolation
1500Vrms
Chipset Manufacturer
Linear Technology, Texas Instruments
Height - Seated (Max)
0.500" (12.70mm)
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
26µH @ 10kHz
| Attribute | Value |
|---|---|
| Type | For DC/DC Converters |
| Footprint | 0.699" L x 0.530" W (17.75mm x 13.46mm) |
| Frequency | 250kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Applications | Flyback Converters |
| Manufacturer | Würth Elektronik |
| Mounting Type | Surface Mount |
| Intended Chipset | LT4321, LT4295 |
| Voltage - Primary | 42 ~ 57V |
| Voltage - Auxiliary | 12V @ 10mA |
| Voltage - Isolation | 1500Vrms |
| Chipset Manufacturer | Linear Technology, Texas Instruments |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 26µH @ 10kHz |
