Step1: Product

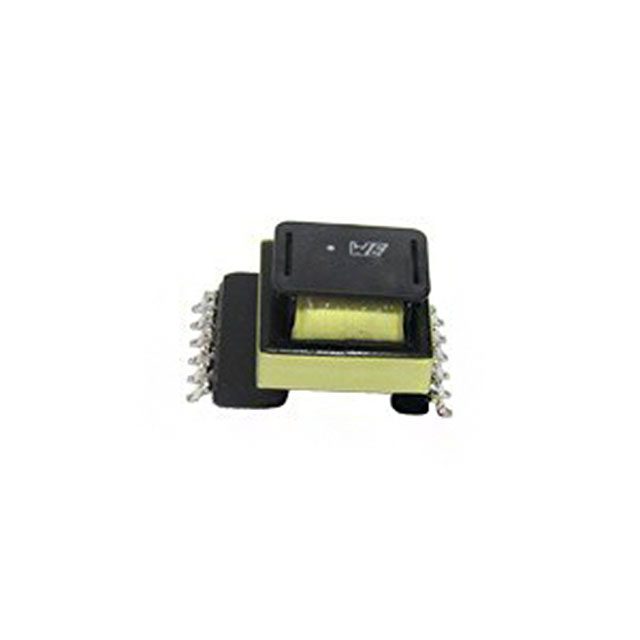

Würth Elektronik 7508111323

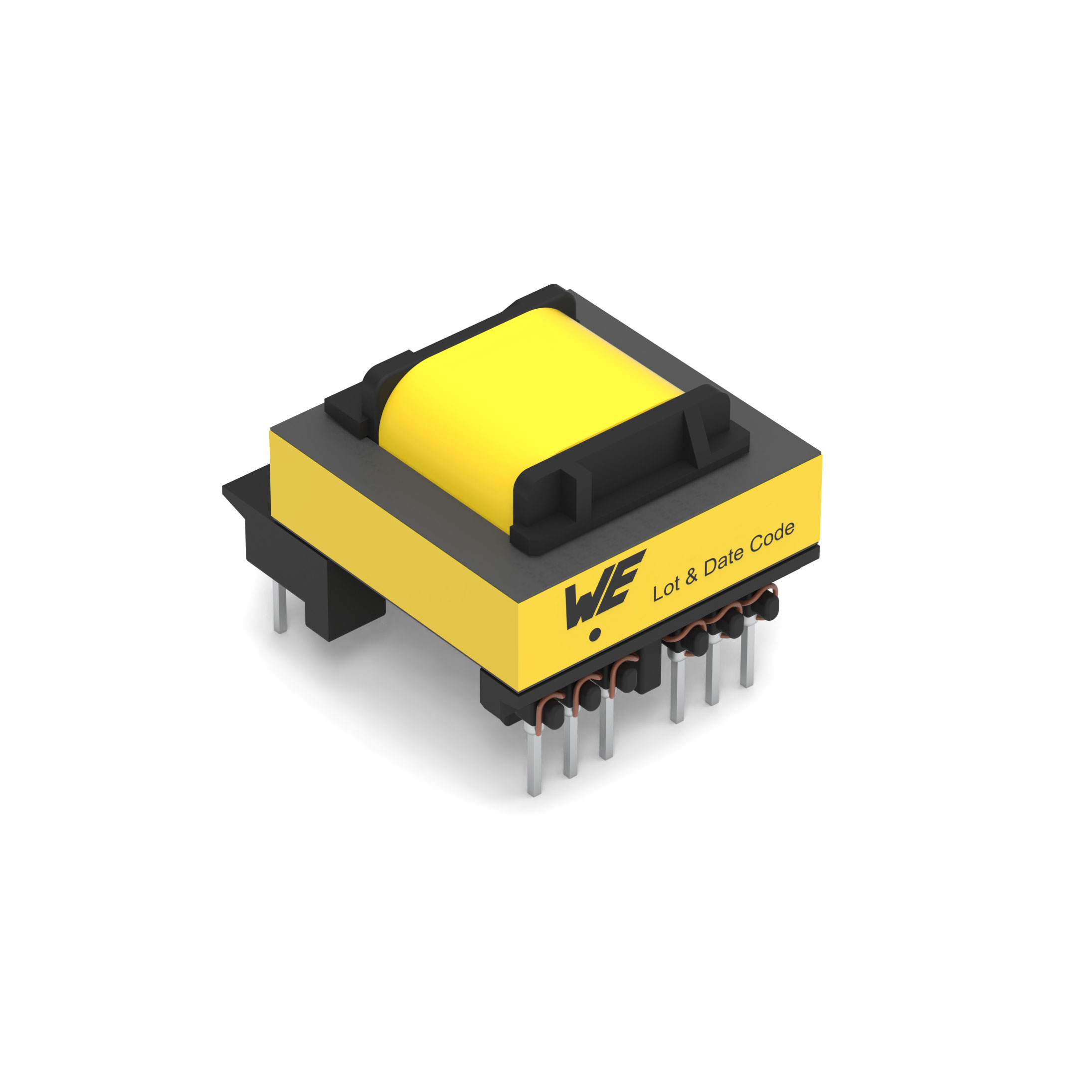

Image shown is a representation only
Manufacturer
Manufacturer No
7508111323
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
XFMR FLYBACK AC/DC CONV 2MH SMD
Detailed Description
Flyback Converters For For AC/DC Converters SMPS Transformer 4000Vrms Isolation 50 ~ 102kHz Surface Mount
Datasheet
Type
For AC/DC Converters
Series
MID-OLTI
Footprint
1.059" L x 0.700" W (26.90mm x 17.78mm)
Frequency
50 ~ 102kHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
Flyback Converters
Manufacturer
Würth Elektronik
Mounting Type
Surface Mount
Intended Chipset
LM5023
Size / Dimension
1.059" L x 0.700" W (26.90mm x 17.78mm)
Voltage - Primary
120 ~ 375V
Voltage - Isolation
4000Vrms
Chipset Manufacturer
Texas Instruments
Height - Seated (Max)
0.543" (13.80mm)
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
2mH @ 10kHz
| Attribute | Value |
|---|---|
| Type | For AC/DC Converters |
| Series | MID-OLTI |
| Footprint | 1.059" L x 0.700" W (26.90mm x 17.78mm) |
| Frequency | 50 ~ 102kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | Flyback Converters |
| Manufacturer | Würth Elektronik |
| Mounting Type | Surface Mount |
| Intended Chipset | LM5023 |
| Size / Dimension | 1.059" L x 0.700" W (26.90mm x 17.78mm) |
| Voltage - Primary | 120 ~ 375V |
| Voltage - Isolation | 4000Vrms |
| Chipset Manufacturer | Texas Instruments |
| Height - Seated (Max) | 0.543" (13.80mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 2mH @ 10kHz |
