Step1: Product
Würth Elektronik 750311558

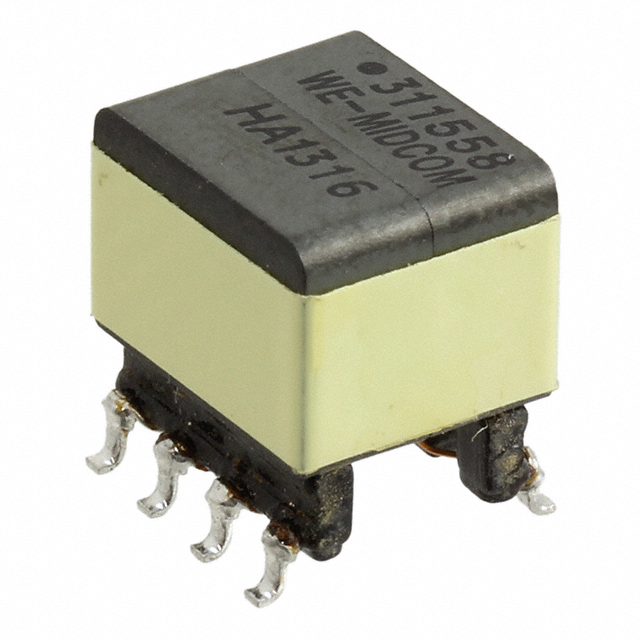

Image shown is a representation only
Manufacturer
Manufacturer No
750311558
Date Code
1141
Quantity
745
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
XFMR FLYBACK DC/DC CONV 300UH SM
Detailed Description
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 200 ~ 300kHz Surface Mount
Datasheet
Type
For DC/DC Converters
Series
WE-FB, MID-FLYLT
Footprint
0.385" L x 0.360" W (9.78mm x 9.14mm)
Frequency
200 ~ 300kHz
Packaging
Tape & Reel (TR); Cut Tape (CT)
Applications
Flyback Converters
Manufacturer
Würth Elektronik
Mounting Type
Surface Mount
Intended Chipset
LT8300
Voltage - Primary
35 ~ 75V
Voltage - Auxiliary
5V
Voltage - Isolation
1500Vrms
Chipset Manufacturer
Linear Technology
Height - Seated (Max)
0.415" (10.54mm)
Operating Temperature
-40°C ~ 125°C
Inductance @ Frequency
300µH @ 10kHz
| Attribute | Value |
|---|---|
| Type | For DC/DC Converters |
| Series | WE-FB, MID-FLYLT |
| Footprint | 0.385" L x 0.360" W (9.78mm x 9.14mm) |
| Frequency | 200 ~ 300kHz |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Applications | Flyback Converters |
| Manufacturer | Würth Elektronik |
| Mounting Type | Surface Mount |
| Intended Chipset | LT8300 |
| Voltage - Primary | 35 ~ 75V |
| Voltage - Auxiliary | 5V |
| Voltage - Isolation | 1500Vrms |
| Chipset Manufacturer | Linear Technology |
| Height - Seated (Max) | 0.415" (10.54mm) |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 300µH @ 10kHz |
