Step1: Product

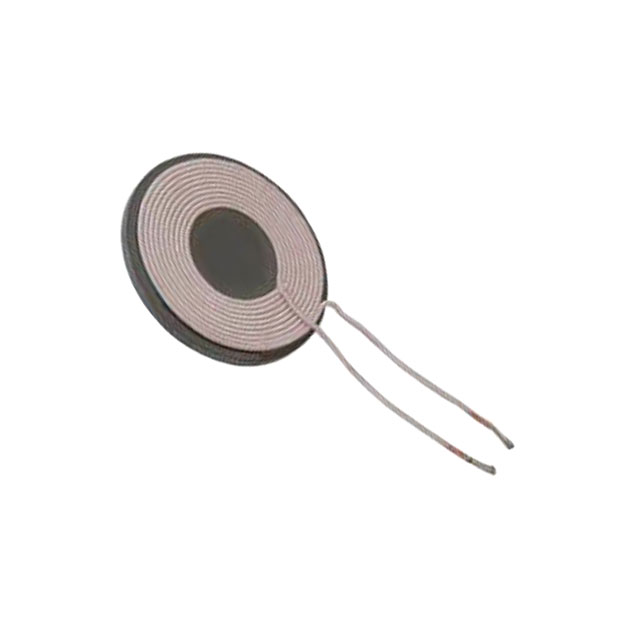

Vishay Dale IWTX47R0BEEB6R3J11
Image shown is a representation only
Manufacturer
Manufacturer No
IWTX47R0BEEB6R3J11
Packaging
Bulk
Description
WIRELESS CHARGING COIL
Detailed Description
1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 38mOhm
DataSheet
Type
1 Coil, 1 Layer
Function
Transmitter
Q @ Freq
190 @ 200kHz
Packaging
Bulk
Tolerance
±5%
Inductance
6.3µH
Part Status
Obsolete
Manufacturer
Vishay Dale
Size / Dimension
1.85" Dia x 0.19" H (47.0mm x 4.9mm)
DC Resistance (DCR)
38mOhm
Current Rating (Amps)
7A
Operating Temperature
-55°C ~ 105°C
Frequency - Self Resonant
22MHz
Current - Saturation (Isat)
22A
| Attribute | Value |
|---|---|
| Type | 1 Coil, 1 Layer |
| Function | Transmitter |
| Q @ Freq | 190 @ 200kHz |
| Packaging | Bulk |
| Tolerance | ±5% |
| Inductance | 6.3µH |
| Part Status | Obsolete |
| Manufacturer | Vishay Dale |
| Size / Dimension | 1.85" Dia x 0.19" H (47.0mm x 4.9mm) |
| DC Resistance (DCR) | 38mOhm |
| Current Rating (Amps) | 7A |
| Operating Temperature | -55°C ~ 105°C |
| Frequency - Self Resonant | 22MHz |
| Current - Saturation (Isat) | 22A |
