Step1: Product
Vishay Dale IWTX47R0DAEB6R3JF1

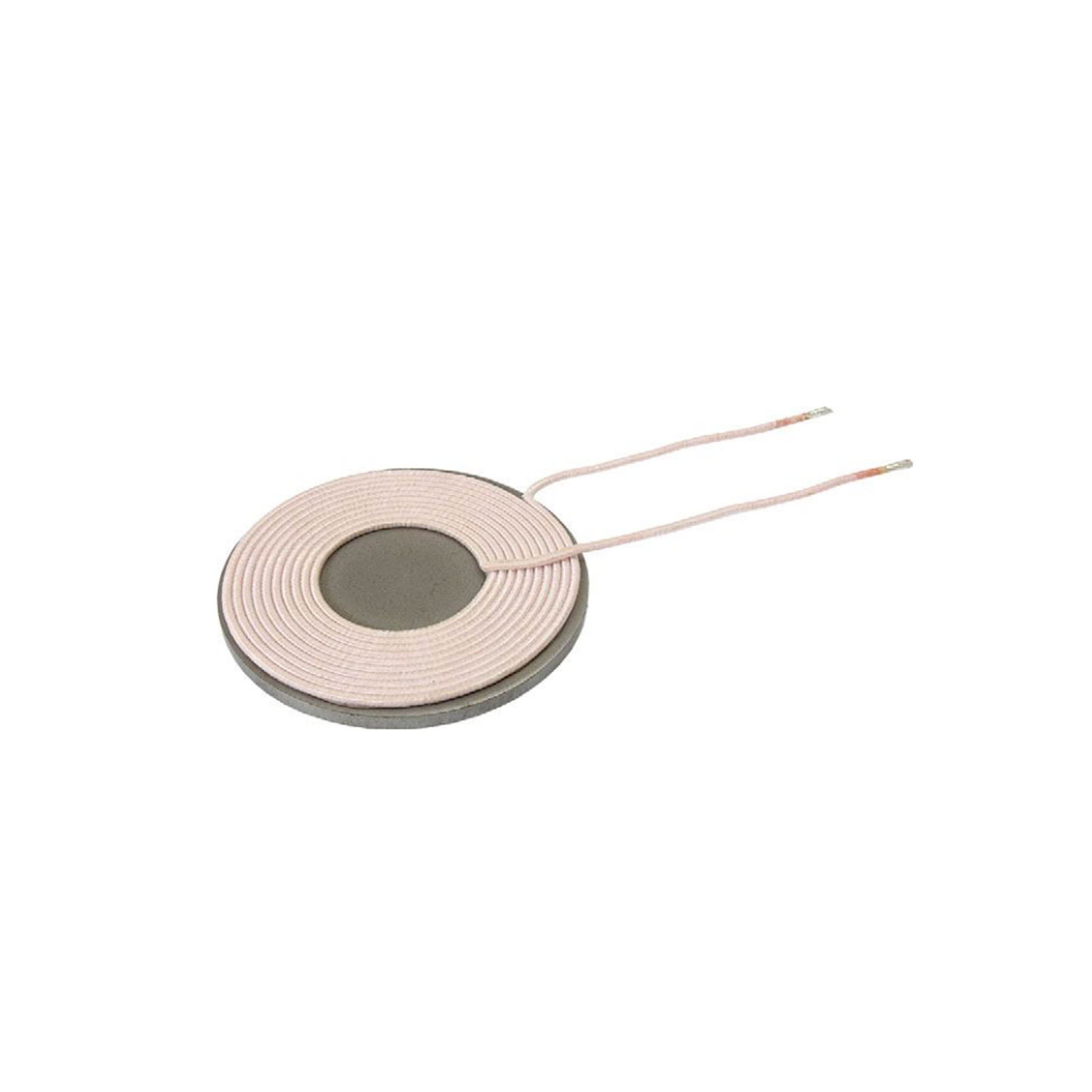

Image shown is a representation only
Manufacturer
Manufacturer No
IWTX47R0DAEB6R3JF1
Packaging
Tray
Description
IWTX-47R0DA-F1 6.3 5% EB E2
Detailed Description
1 Coil, 1 Layer 6.3µH Wireless Charging Coil Transmitter 40mOhm
Datasheet
Type
1 Coil, 1 Layer
Function
Transmitter
Q @ Freq
190 @ 200kHz
Packaging
Tray
Tolerance
±5%
Inductance
6.3µH
Manufacturer
Vishay Dale
Size / Dimension
1.81" L x 1.81" W x 0.22" H (46.0mm x 46.0mm x 5.6mm)
DC Resistance (DCR)
40mOhm
Current Rating (Amps)
7A
Operating Temperature
-40°C ~ 105°C
Current - Saturation (Isat)
22A
| Attribute | Value |
|---|---|
| Type | 1 Coil, 1 Layer |
| Function | Transmitter |
| Q @ Freq | 190 @ 200kHz |
| Packaging | Tray |
| Tolerance | ±5% |
| Inductance | 6.3µH |
| Manufacturer | Vishay Dale |
| Size / Dimension | 1.81" L x 1.81" W x 0.22" H (46.0mm x 46.0mm x 5.6mm) |
| DC Resistance (DCR) | 40mOhm |
| Current Rating (Amps) | 7A |
| Operating Temperature | -40°C ~ 105°C |
| Current - Saturation (Isat) | 22A |
