Step1: Product

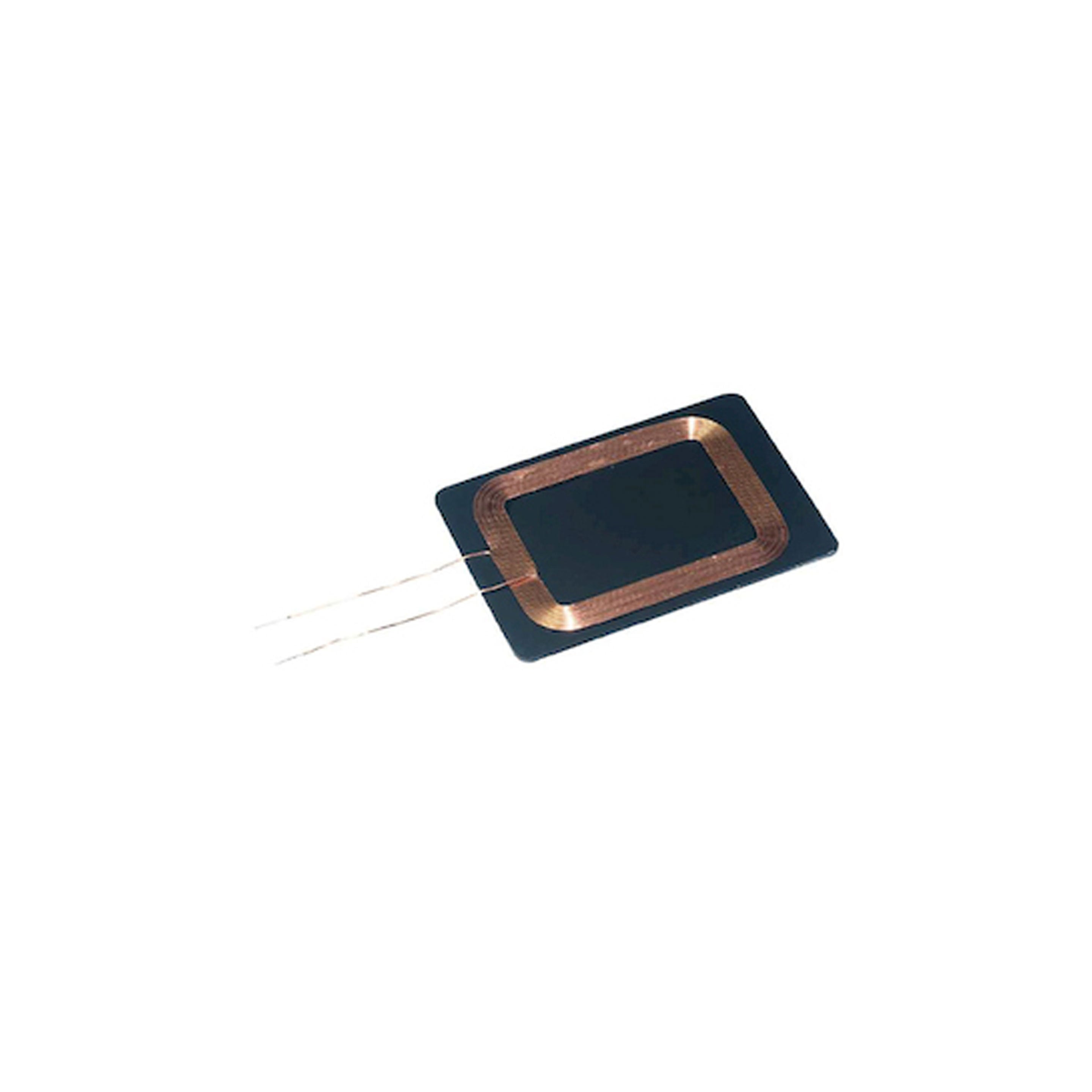

Vishay Dale IWAS4532AGEB140KF1
Image shown is a representation only
Manufacturer
Manufacturer No
IWAS4532AGEB140KF1
Packaging
Tray
Description
WIRELESS CHARGING RECEIVE COIL
Detailed Description
1 Coil, 1 Layer 14µH Wireless Charging Coil Receiver 355mOhm Max
DataSheet
Type
1 Coil, 1 Layer
Function
Receiver
Q @ Freq
24 @ 100kHz
Packaging
Tray
Tolerance
±10%
Inductance
14µH
Part Status
Active
Manufacturer
Vishay Dale
Size / Dimension
1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm)
DC Resistance (DCR)
355mOhm Max
Current Rating (Amps)
1.2A
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Type | 1 Coil, 1 Layer |
| Function | Receiver |
| Q @ Freq | 24 @ 100kHz |
| Packaging | Tray |
| Tolerance | ±10% |
| Inductance | 14µH |
| Part Status | Active |
| Manufacturer | Vishay Dale |
| Size / Dimension | 1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm) |
| DC Resistance (DCR) | 355mOhm Max |
| Current Rating (Amps) | 1.2A |
| Operating Temperature | -40°C ~ 85°C |
