Step1: Product
Vishay Dale IWTX5050FEEB100KF1

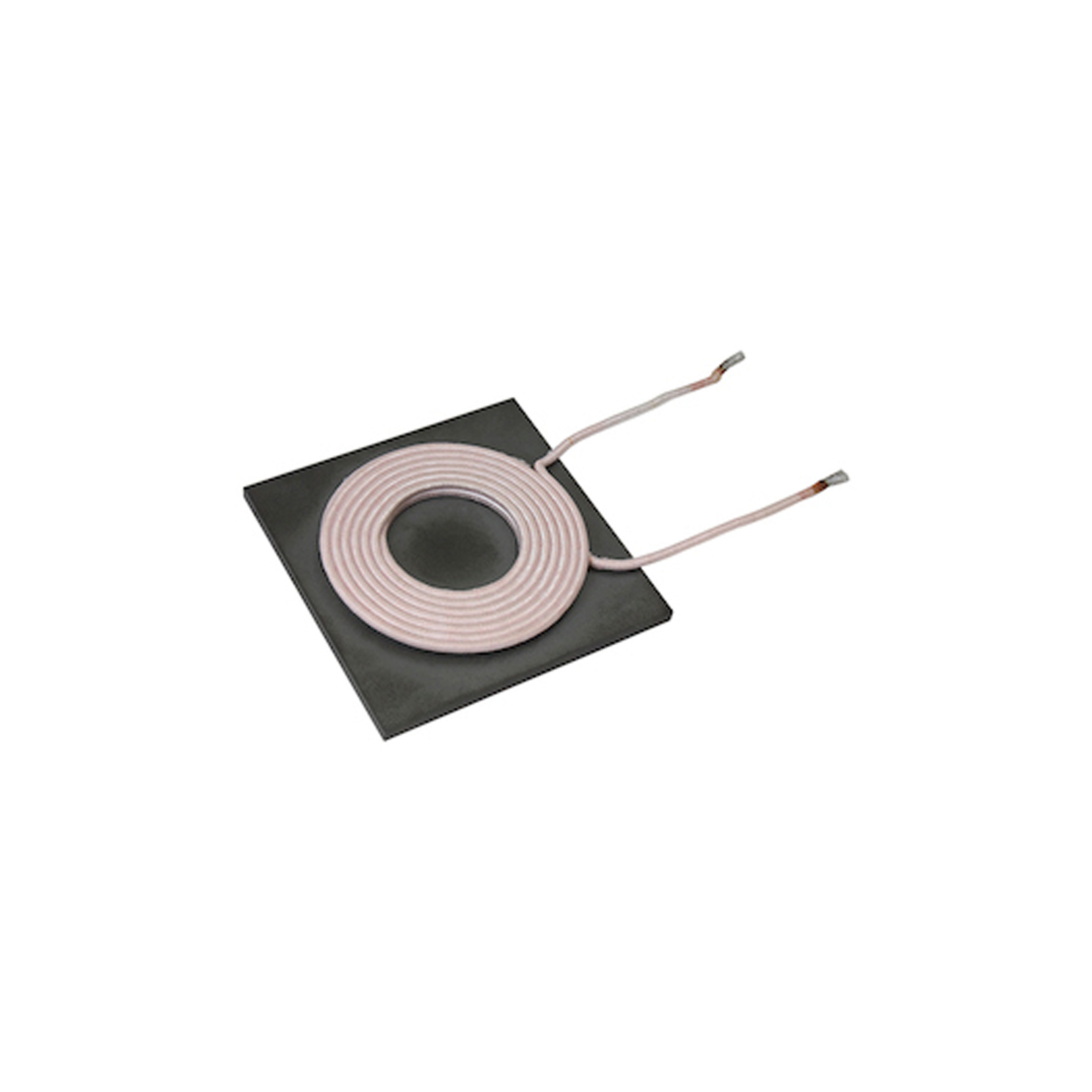

Image shown is a representation only
Manufacturer
Manufacturer No
IWTX5050FEEB100KF1
Packaging
Tray
Description
WIRELESS CHARGING TRANSMIT COIL
Detailed Description
1 Coil, 1 Layer 10µH Wireless Charging Coil Transmitter 29.7mOhm Max
DataSheet
Type
1 Coil, 1 Layer
Function
Transmitter
Q @ Freq
200 @ 100kHz
Packaging
Tray
Tolerance
±10%
Inductance
10µH
Part Status
Active
Manufacturer
Vishay Dale
Size / Dimension
1.97" Dia x 0.26" H (50.0mm x 6.5mm)
DC Resistance (DCR)
29.7mOhm Max
Current Rating (Amps)
9A
Operating Temperature
-40°C ~ 85°C
| Attribute | Value |
|---|---|
| Type | 1 Coil, 1 Layer |
| Function | Transmitter |
| Q @ Freq | 200 @ 100kHz |
| Packaging | Tray |
| Tolerance | ±10% |
| Inductance | 10µH |
| Part Status | Active |
| Manufacturer | Vishay Dale |
| Size / Dimension | 1.97" Dia x 0.26" H (50.0mm x 6.5mm) |
| DC Resistance (DCR) | 29.7mOhm Max |
| Current Rating (Amps) | 9A |
| Operating Temperature | -40°C ~ 85°C |
