Step1: Product

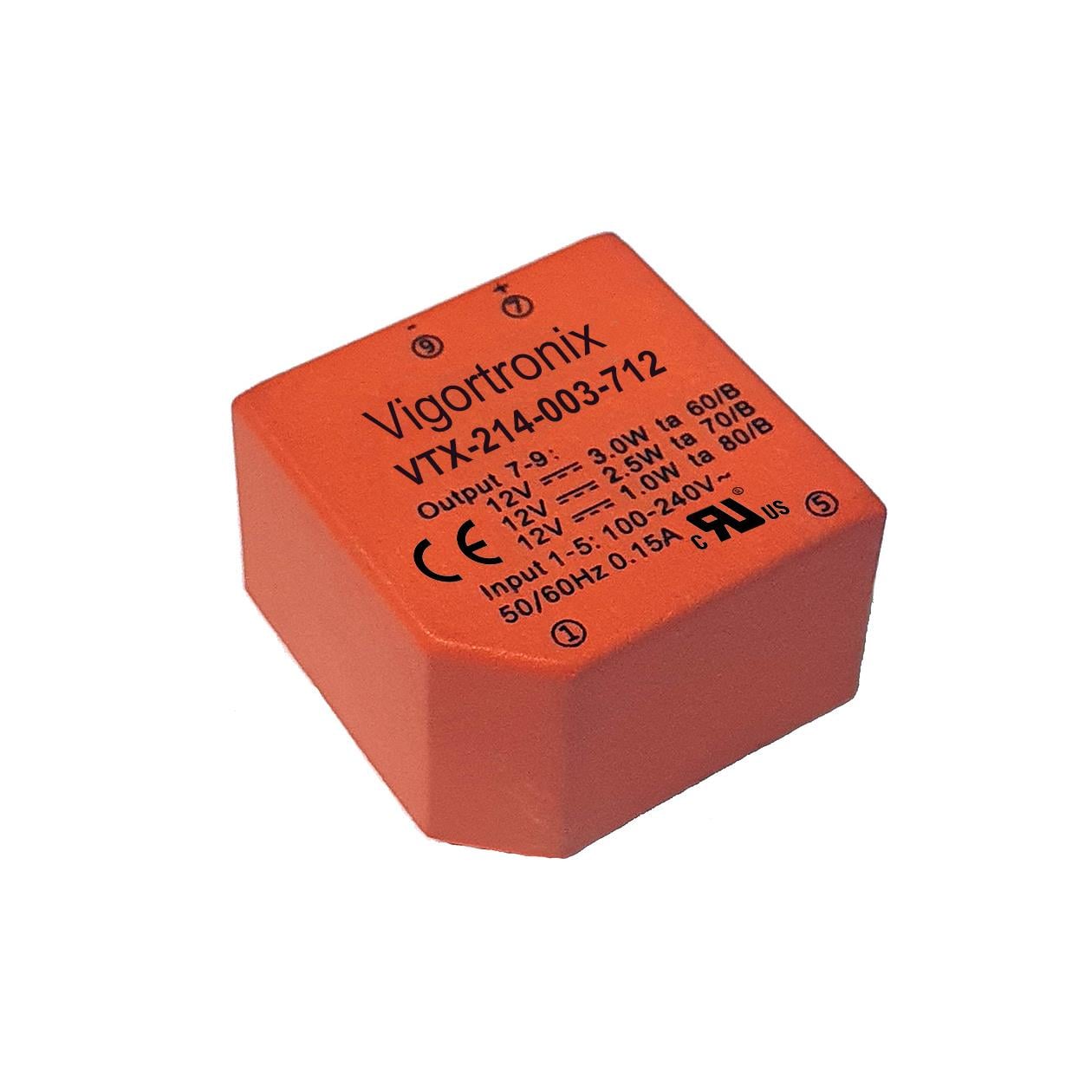

Vigortronix VTX-214-003-724
Image shown is a representation only
Manufacturer
Manufacturer No
VTX-214-003-724
Package
4-DIP Module
Packaging
Bulk
Description
AC/DC CONVERTER 24V 3W
Detailed Description
Enclosed AC DC Converters 1 Output 24V 125mA 90 ~ 264 VAC, 120 ~ 370 VDC Input
DataSheet
Type
Enclosed
Series
VTX-214
Weight
0.037 lb (17 g)
Packaging
Bulk
Efficiency
65%
Part Status
Active
Applications
Household Appliances, ITE (Commercial)
Manufacturer
Vigortronix
Mounting Type
Through Hole
Power (Watts)
3 W
Package / Case
4-DIP Module
Approval Agency
EN, IEC, UL
Standard Number
62368-1; 61558-2; 61000
Voltage - Input
90 ~ 264 VAC, 120 ~ 370 VDC
Size / Dimension
0.98" L x 0.98" W x 0.63" H (25.0mm x 25.0mm x 16.0mm)
Number of Outputs
1
Voltage - Output 1
24V
Operating Temperature
-25°C ~ 80°C (With Derating)
Current - Output (Max)
125mA
| Attribute | Value |
|---|---|
| Type | Enclosed |
| Series | VTX-214 |
| Weight | 0.037 lb (17 g) |
| Packaging | Bulk |
| Efficiency | 65% |
| Part Status | Active |
| Applications | Household Appliances, ITE (Commercial) |
| Manufacturer | Vigortronix |
| Mounting Type | Through Hole |
| Power (Watts) | 3 W |
| Package / Case | 4-DIP Module |
| Approval Agency | EN, IEC, UL |
| Standard Number | 62368-1; 61558-2; 61000 |
| Voltage - Input | 90 ~ 264 VAC, 120 ~ 370 VDC |
| Size / Dimension | 0.98" L x 0.98" W x 0.63" H (25.0mm x 25.0mm x 16.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Operating Temperature | -25°C ~ 80°C (With Derating) |
| Current - Output (Max) | 125mA |
