Step1: Product
Vigortronix VTX-214-002-315

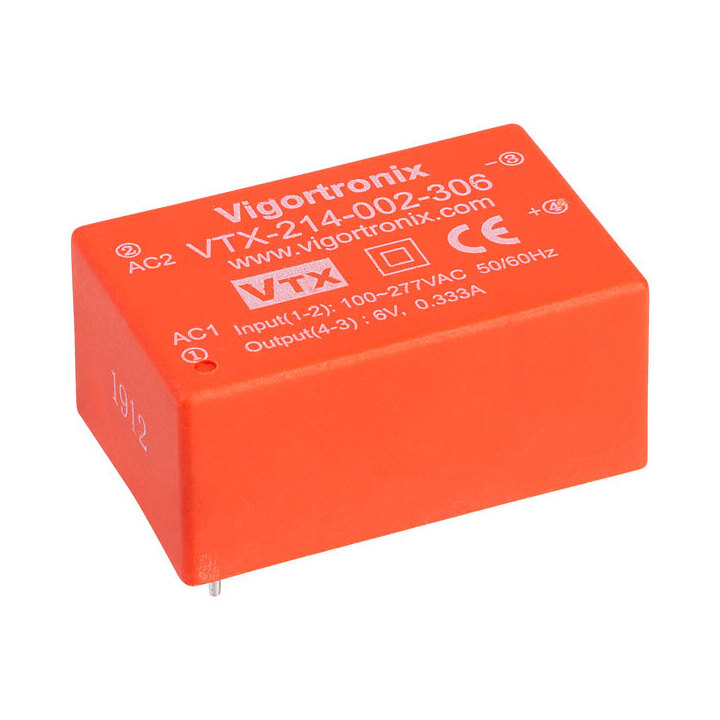

Image shown is a representation only
Manufacturer
Manufacturer No
VTX-214-002-315
Package
4-DIP Module
Packaging
Bulk
Description
AC/DC CONVERTER 15V 2W
Detailed Description
Enclosed AC DC Converters 1 Output 15V 133mA 85 ~ 305 VAC, 100 ~ 430 VDC Input
DataSheet
Type
Enclosed
Series
VTX-214
Weight
0.053 lb (24.04 g)
Packaging
Bulk
Efficiency
72%
Part Status
Active
Applications
Household Appliances, ITE (Commercial)
Manufacturer
Vigortronix
Mounting Type
Through Hole
Power (Watts)
2 W
Package / Case
4-DIP Module
Approval Agency
CE, EN, TUV, UL
Standard Number
62368-1; 61558-2
Voltage - Input
85 ~ 305 VAC, 100 ~ 430 VDC
Size / Dimension
1.33" L x 0.87" W x 0.59" H (33.7mm x 22.2mm x 15.0mm)
Number of Outputs
1
Voltage - Output 1
15V
Operating Temperature
-25°C ~ 85°C (With Derating)
Current - Output (Max)
133mA
| Attribute | Value |
|---|---|
| Type | Enclosed |
| Series | VTX-214 |
| Weight | 0.053 lb (24.04 g) |
| Packaging | Bulk |
| Efficiency | 72% |
| Part Status | Active |
| Applications | Household Appliances, ITE (Commercial) |
| Manufacturer | Vigortronix |
| Mounting Type | Through Hole |
| Power (Watts) | 2 W |
| Package / Case | 4-DIP Module |
| Approval Agency | CE, EN, TUV, UL |
| Standard Number | 62368-1; 61558-2 |
| Voltage - Input | 85 ~ 305 VAC, 100 ~ 430 VDC |
| Size / Dimension | 1.33" L x 0.87" W x 0.59" H (33.7mm x 22.2mm x 15.0mm) |
| Number of Outputs | 1 |
| Voltage - Output 1 | 15V |
| Operating Temperature | -25°C ~ 85°C (With Derating) |
| Current - Output (Max) | 133mA |
