Step1: Product

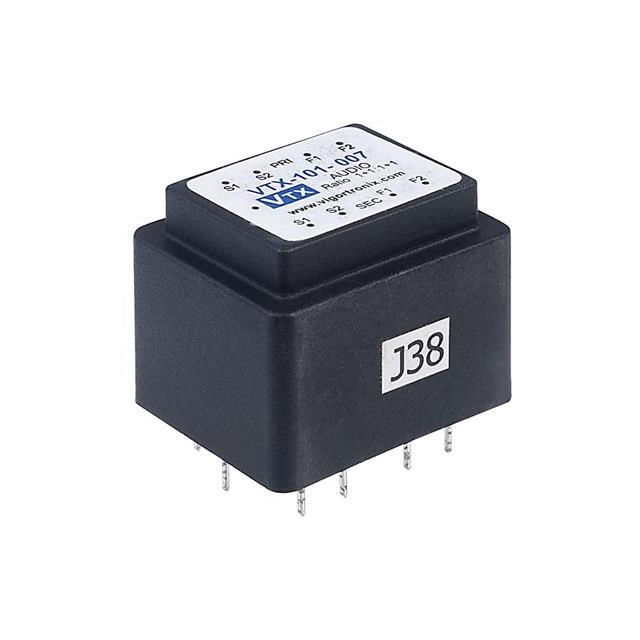

Vigortronix VTX-101-007
Image shown is a representation only
Manufacturer
Manufacturer No
VTX-101-007
Packaging
Box
Description
AUDIO PCB TRAN. ENCAP. RATIO 1
Detailed Description
600 Impedance Primary Ohms 600 Impedance Secondary Ohms Audio Transformer 30Hz ~ 35kHz Through Hole
Datasheet
Series
VTX-101
Packaging
Box
Manufacturer
Vigortronix
Mounting Type
Through Hole
Frequency Range
30Hz ~ 35kHz
Size / Dimension
1.083" L x 0.906" W (27.50mm x 23.00mm)
Transformer Type
Impedance Matching
Termination Style
PC Pin
Voltage - Isolation
1000Vrms
Height - Seated (Max)
0.886" (22.50mm)
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
600
DC Resistance (DCR) - Primary
42Ohm
DC Resistance (DCR) - Secondary
58Ohm
| Attribute | Value |
|---|---|
| Series | VTX-101 |
| Packaging | Box |
| Manufacturer | Vigortronix |
| Mounting Type | Through Hole |
| Frequency Range | 30Hz ~ 35kHz |
| Size / Dimension | 1.083" L x 0.906" W (27.50mm x 23.00mm) |
| Transformer Type | Impedance Matching |
| Termination Style | PC Pin |
| Voltage - Isolation | 1000Vrms |
| Height - Seated (Max) | 0.886" (22.50mm) |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 600 |
| DC Resistance (DCR) - Primary | 42Ohm |
| DC Resistance (DCR) - Secondary | 58Ohm |
