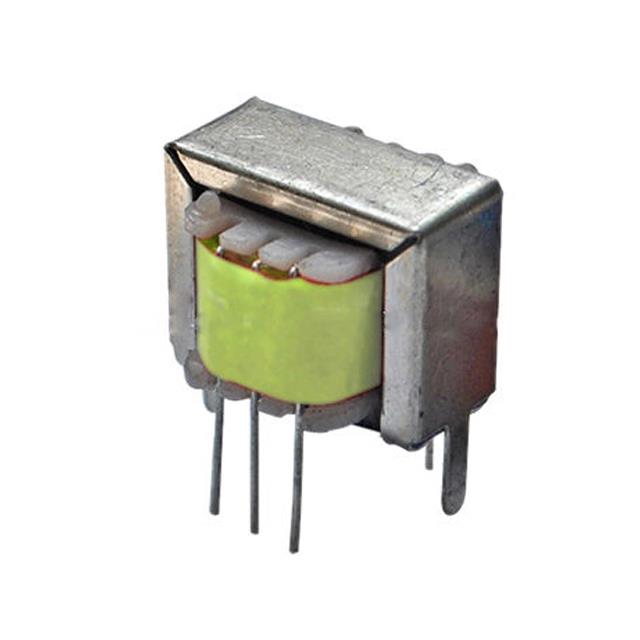

Vigortronix VTX-100-001
Image shown is a representation only
Manufacturer
Manufacturer No
VTX-100-001
Packaging
Box
Description
800O, RATIO 1: 1, 2MW, MIN AUDIO
Detailed Description
800 Impedance Primary Ohms 800CT Impedance Secondary Ohms 1:01 Audio Transformer 200Hz ~ 15kHz Through Hole
DataSheet
Series
VTX-100
Packaging
Box
Part Status
Active
Power Level
2mW
Manufacturer
Vigortronix
Mounting Type
Through Hole
Frequency Range
200Hz ~ 15kHz
Size / Dimension
0.807" L x 0.630" W (20.5mm x 16.00mm)
Transformer Type
Impedance Matching
Termination Style
PC Pin
Height - Seated (Max)
0.669" (16.99mm)
Impedance - Primary (Ohms)
800
Impedance - Secondary (Ohms)
800CT
DC Resistance (DCR) - Primary
63Ohm
DC Resistance (DCR) - Secondary
84Ohm
Turns Ratio - Primary:Secondary
1:01
| Attribute | Value |
|---|---|
| Series | VTX-100 |
| Packaging | Box |
| Part Status | Active |
| Power Level | 2mW |
| Manufacturer | Vigortronix |
| Mounting Type | Through Hole |
| Frequency Range | 200Hz ~ 15kHz |
| Size / Dimension | 0.807" L x 0.630" W (20.5mm x 16.00mm) |
| Transformer Type | Impedance Matching |
| Termination Style | PC Pin |
| Height - Seated (Max) | 0.669" (16.99mm) |
| Impedance - Primary (Ohms) | 800 |
| Impedance - Secondary (Ohms) | 800CT |
| DC Resistance (DCR) - Primary | 63Ohm |
| DC Resistance (DCR) - Secondary | 84Ohm |
| Turns Ratio - Primary:Secondary | 1:01 |
