Step1: Product

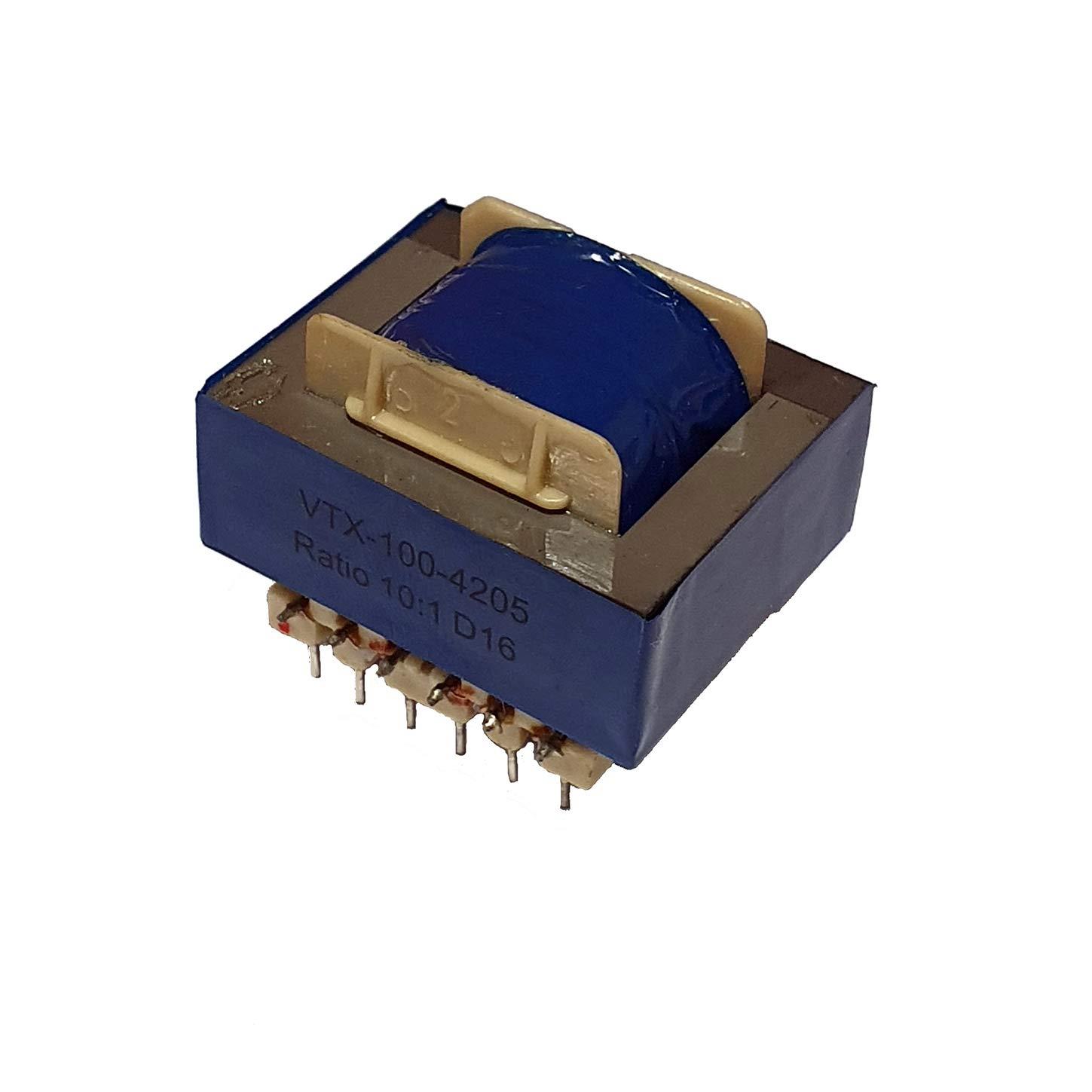

Vigortronix VTX-100-4205
Image shown is a representation only
Manufacturer
Manufacturer No
VTX-100-4205
Packaging
Box
Description
6 OHMS / 600 0HMS BIFILAR AUDIO
Detailed Description
600 Impedance Primary Ohms 6 Impedance Secondary Ohms Audio Transformer 20Hz ~ 20kHz Through Hole
DataSheet
Series
VTX-100
Packaging
Box
Part Status
Active
Manufacturer
Vigortronix
Mounting Type
Through Hole
Frequency Range
20Hz ~ 20kHz
Size / Dimension
1.697" L x 1.406" W (43.10mm x 35.7mm)
Transformer Type
Impedance Matching
Termination Style
PC Pin
Height - Seated (Max)
1.181" (30.00mm)
Operating Temperature
-20°C ~ 70°C
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
6
DC Resistance (DCR) - Primary
15.34Ohm
DC Resistance (DCR) - Secondary
44mOhm
| Attribute | Value |
|---|---|
| Series | VTX-100 |
| Packaging | Box |
| Part Status | Active |
| Manufacturer | Vigortronix |
| Mounting Type | Through Hole |
| Frequency Range | 20Hz ~ 20kHz |
| Size / Dimension | 1.697" L x 1.406" W (43.10mm x 35.7mm) |
| Transformer Type | Impedance Matching |
| Termination Style | PC Pin |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Operating Temperature | -20°C ~ 70°C |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 6 |
| DC Resistance (DCR) - Primary | 15.34Ohm |
| DC Resistance (DCR) - Secondary | 44mOhm |
