Step1: Product

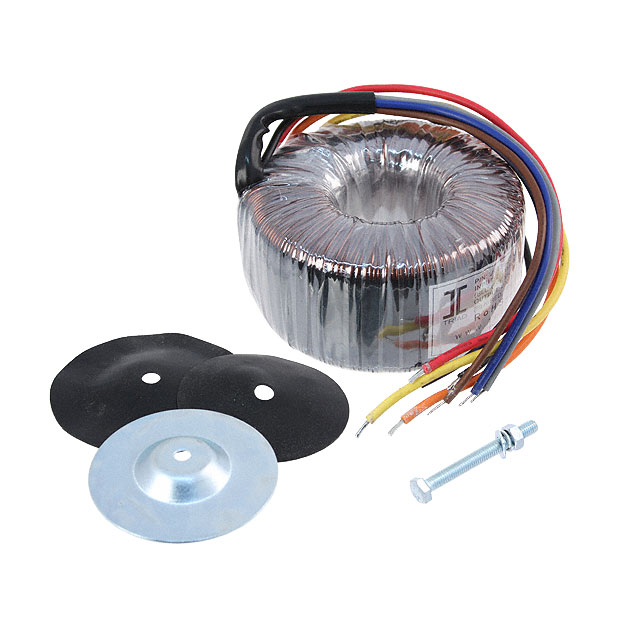

Triad Magnetics VPT30-3330
Image shown is a representation only
Manufacturer
Manufacturer No
VPT30-3330
Packaging
Box
Description
PWR XFMR TOROIDAL 100VA CHAS MT
Detailed Description
Toroidal 100VA Power Transformer 115V, 230V Primary Parallel 15V, Series 30V Secondary Parallel 6.66A, Series 3.33A Chassis Mount
Datasheet
Type
Toroidal
Series
Chassis Mount: World Series™
Weight
2.2 lbs (997.9 g)
Packaging
Box
Center Tap
No
Power - Max
100VA
Manufacturer
Triad Magnetics
Mounting Type
Chassis Mount
Size / Dimension
87.00mm Dia x 47.00mm W
Termination Style
Wire Leads
Voltage - Primary
115V, 230V
Primary Winding(s)
Dual
Voltage - Isolation
4000Vrms
Secondary Winding(s)
Dual
Height - Seated (Max)
51.0mm
Current - Output (Max)
Parallel 6.66A, Series 3.33A
Voltage - Secondary (Full Load)
Parallel 15V, Series 30V
| Attribute | Value |
|---|---|
| Type | Toroidal |
| Series | Chassis Mount: World Series™ |
| Weight | 2.2 lbs (997.9 g) |
| Packaging | Box |
| Center Tap | No |
| Power - Max | 100VA |
| Manufacturer | Triad Magnetics |
| Mounting Type | Chassis Mount |
| Size / Dimension | 87.00mm Dia x 47.00mm W |
| Termination Style | Wire Leads |
| Voltage - Primary | 115V, 230V |
| Primary Winding(s) | Dual |
| Voltage - Isolation | 4000Vrms |
| Secondary Winding(s) | Dual |
| Height - Seated (Max) | 51.0mm |
| Current - Output (Max) | Parallel 6.66A, Series 3.33A |
| Voltage - Secondary (Full Load) | Parallel 15V, Series 30V |
