Step1: Product

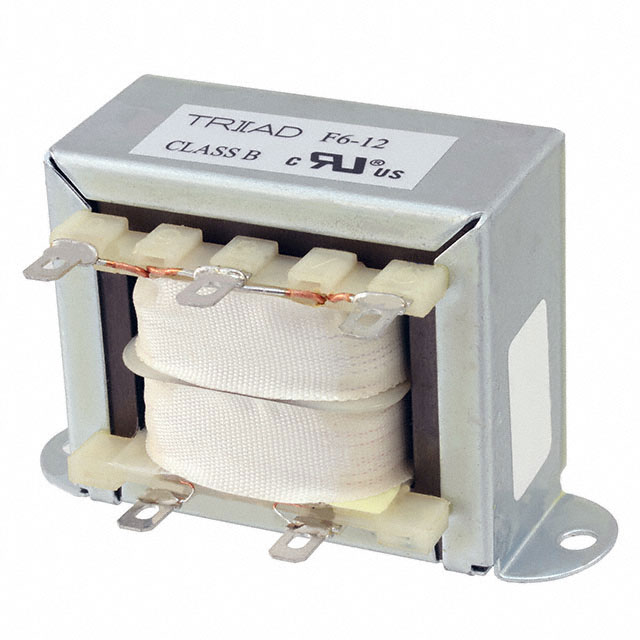

Triad Magnetics F6-12
Image shown is a representation only
Manufacturer
Manufacturer No
F6-12
Packaging
Box
Description
PWR XFMR LAMINATED 30VA CHAS MT
Detailed Description
Laminated Core 30VA Power Transformer 115V Primary 12.6V Secondary 2.5A Chassis Mount
DataSheet
Type
Laminated Core
Series
Quick Pack
Weight
1.1 lbs (499 g)
Packaging
Box
Center Tap
Yes
Part Status
Active
Power - Max
30VA
Manufacturer
Triad Magnetics
Mounting Type
Chassis Mount
Size / Dimension
82.55mm L x 42.85mm W
Termination Style
Solder, Quick Connect - 0.187" (4.7mm)
Voltage - Primary
115V
Primary Winding(s)
Single
Voltage - Isolation
2500VAC
Secondary Winding(s)
Single
Height - Seated (Max)
49.20mm
Current - Output (Max)
2.5A
Voltage - Secondary (Full Load)
12.6V
| Attribute | Value |
|---|---|
| Type | Laminated Core |
| Series | Quick Pack |
| Weight | 1.1 lbs (499 g) |
| Packaging | Box |
| Center Tap | Yes |
| Part Status | Active |
| Power - Max | 30VA |
| Manufacturer | Triad Magnetics |
| Mounting Type | Chassis Mount |
| Size / Dimension | 82.55mm L x 42.85mm W |
| Termination Style | Solder, Quick Connect - 0.187" (4.7mm) |
| Voltage - Primary | 115V |
| Primary Winding(s) | Single |
| Voltage - Isolation | 2500VAC |
| Secondary Winding(s) | Single |
| Height - Seated (Max) | 49.20mm |
| Current - Output (Max) | 2.5A |
| Voltage - Secondary (Full Load) | 12.6V |
