Step1: Product
Triad Magnetics F16-2250-C2

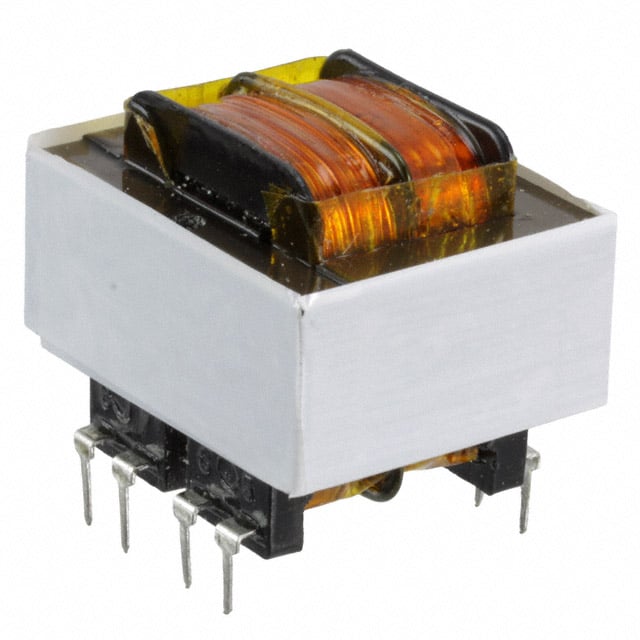

Image shown is a representation only
Manufacturer
Manufacturer No
F16-2250-C2
Packaging
Tray
Description
PWR XFMR LAMINATED 36VA TH
Detailed Description
Laminated Core 36VA Power Transformer 115V Primary Parallel 8V, Series 16V Secondary Parallel 4.5A, Series 2.25A Through Hole
DataSheet
Type
Laminated Core
Series
Split Pack™, Class 2/3, F
Weight
1.1 lbs (499 g)
Packaging
Tray
Center Tap
No
Part Status
Active
Power - Max
36VA
Manufacturer
Triad Magnetics
Mounting Type
Through Hole
Size / Dimension
66.68mm L x 55.55mm W
Termination Style
PC Pin
Voltage - Primary
115V
Primary Winding(s)
Single
Voltage - Isolation
4200Vrms
Secondary Winding(s)
Dual
Height - Seated (Max)
39.67mm
Current - Output (Max)
Parallel 4.5A, Series 2.25A
Voltage - Secondary (Full Load)
Parallel 8V, Series 16V
| Attribute | Value |
|---|---|
| Type | Laminated Core |
| Series | Split Pack™, Class 2/3, F |
| Weight | 1.1 lbs (499 g) |
| Packaging | Tray |
| Center Tap | No |
| Part Status | Active |
| Power - Max | 36VA |
| Manufacturer | Triad Magnetics |
| Mounting Type | Through Hole |
| Size / Dimension | 66.68mm L x 55.55mm W |
| Termination Style | PC Pin |
| Voltage - Primary | 115V |
| Primary Winding(s) | Single |
| Voltage - Isolation | 4200Vrms |
| Secondary Winding(s) | Dual |
| Height - Seated (Max) | 39.67mm |
| Current - Output (Max) | Parallel 4.5A, Series 2.25A |
| Voltage - Secondary (Full Load) | Parallel 8V, Series 16V |
