Step1: Product
Toshiba Semiconductor and Storage SSM6N7002KFU,LF

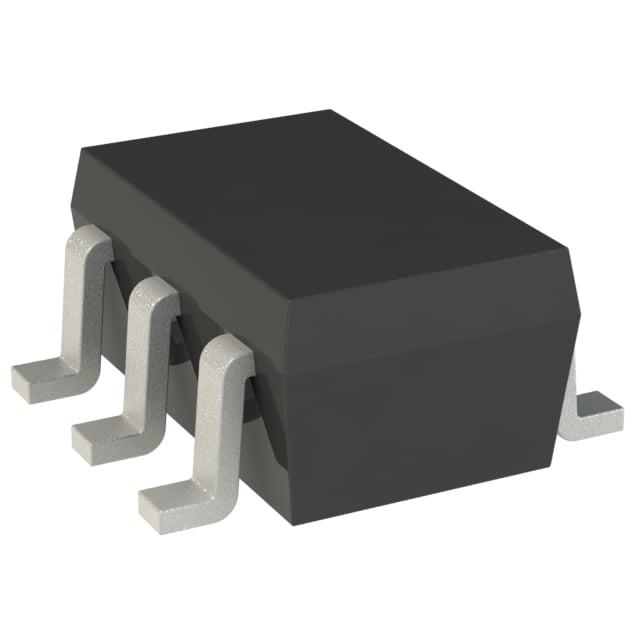

Image shown is a representation only
Manufacturer
Manufacturer No
SSM6N7002KFU,LF
Quantity
11760
Availability
In Stock
Package
6-TSSOP, SC-88, SOT-363
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2N-CH 60V 0.3A US6
Detailed Description
Mosfet Array 60V 300mA 285mW Surface Mount US6
DataSheet
Series
U-MOSVII-H
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
Part Status
Active
Power - Max
285mW
Manufacturer
Toshiba Semiconductor and Storage
Configuration
2 N-Channel (Dual)
Mounting Type
Surface Mount
Package / Case
6-TSSOP, SC-88, SOT-363
Vgs(th) (Max) @ Id
2.1V @ 250µA
Base Product Number
SSM6N7002
Operating Temperature
150°C
Rds On (Max) @ Id, Vgs
1.5Ohm @ 100mA, 10V
Supplier Device Package
US6
Gate Charge (Qg) (Max) @ Vgs
0.6nC @ 4.5V
Drain to Source Voltage (Vdss)
60V
Input Capacitance (Ciss) (Max) @ Vds
40pF @ 10V
Current - Continuous Drain (Id) @ 25°C
300mA
| Attribute | Value |
|---|---|
| Series | U-MOSVII-H |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Power - Max | 285mW |
| Manufacturer | Toshiba Semiconductor and Storage |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Base Product Number | SSM6N7002 |
| Operating Temperature | 150°C |
| Rds On (Max) @ Id, Vgs | 1.5Ohm @ 100mA, 10V |
| Supplier Device Package | US6 |
| Gate Charge (Qg) (Max) @ Vgs | 0.6nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 60V |
| Input Capacitance (Ciss) (Max) @ Vds | 40pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 300mA |
