Step1: Product

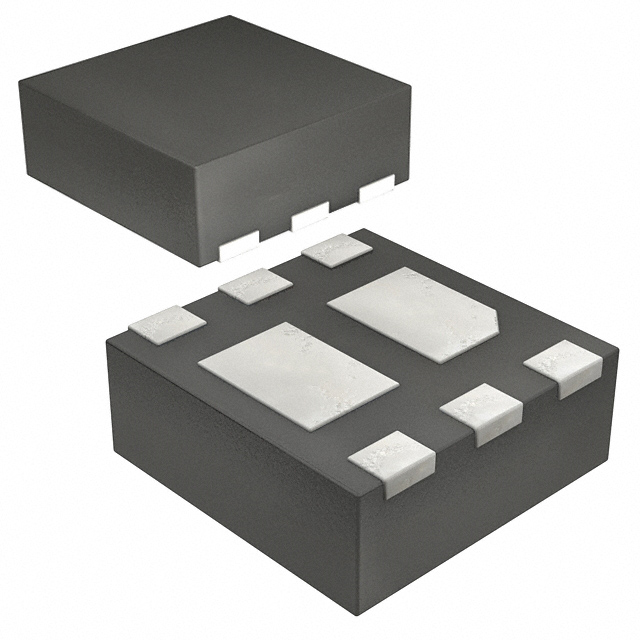

Toshiba Semiconductor and Storage SSM6N57NU,LF
Image shown is a representation only
Manufacturer
Manufacturer No
SSM6N57NU,LF
Quantity
3000
Availability
In Stock
Package
6-WDFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
MOSFET 2N-CH 30V 4A 6DFN
Detailed Description
Mosfet Array 30V 4A 1W Surface Mount 6-µDFN (2x2)
DataSheet
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Technology
MOSFET (Metal Oxide)
Part Status
Active
Power - Max
1W
Manufacturer
Toshiba Semiconductor and Storage
Configuration
2 N-Channel (Dual)
Mounting Type
Surface Mount
Package / Case
6-WDFN Exposed Pad
Vgs(th) (Max) @ Id
1V @ 1mA
Base Product Number
SSM6N57
Operating Temperature
150°C (TJ)
Rds On (Max) @ Id, Vgs
46mOhm @ 2A, 4.5V
Supplier Device Package
6-µDFN (2x2)
Gate Charge (Qg) (Max) @ Vgs
4nC @ 4.5V
Drain to Source Voltage (Vdss)
30V
Input Capacitance (Ciss) (Max) @ Vds
310pF @ 10V
Current - Continuous Drain (Id) @ 25°C
4A
| Attribute | Value |
|---|---|
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Technology | MOSFET (Metal Oxide) |
| Part Status | Active |
| Power - Max | 1W |
| Manufacturer | Toshiba Semiconductor and Storage |
| Configuration | 2 N-Channel (Dual) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Base Product Number | SSM6N57 |
| Operating Temperature | 150°C (TJ) |
| Rds On (Max) @ Id, Vgs | 46mOhm @ 2A, 4.5V |
| Supplier Device Package | 6-µDFN (2x2) |
| Gate Charge (Qg) (Max) @ Vgs | 4nC @ 4.5V |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance (Ciss) (Max) @ Vds | 310pF @ 10V |
| Current - Continuous Drain (Id) @ 25°C | 4A |
