Step1: Product

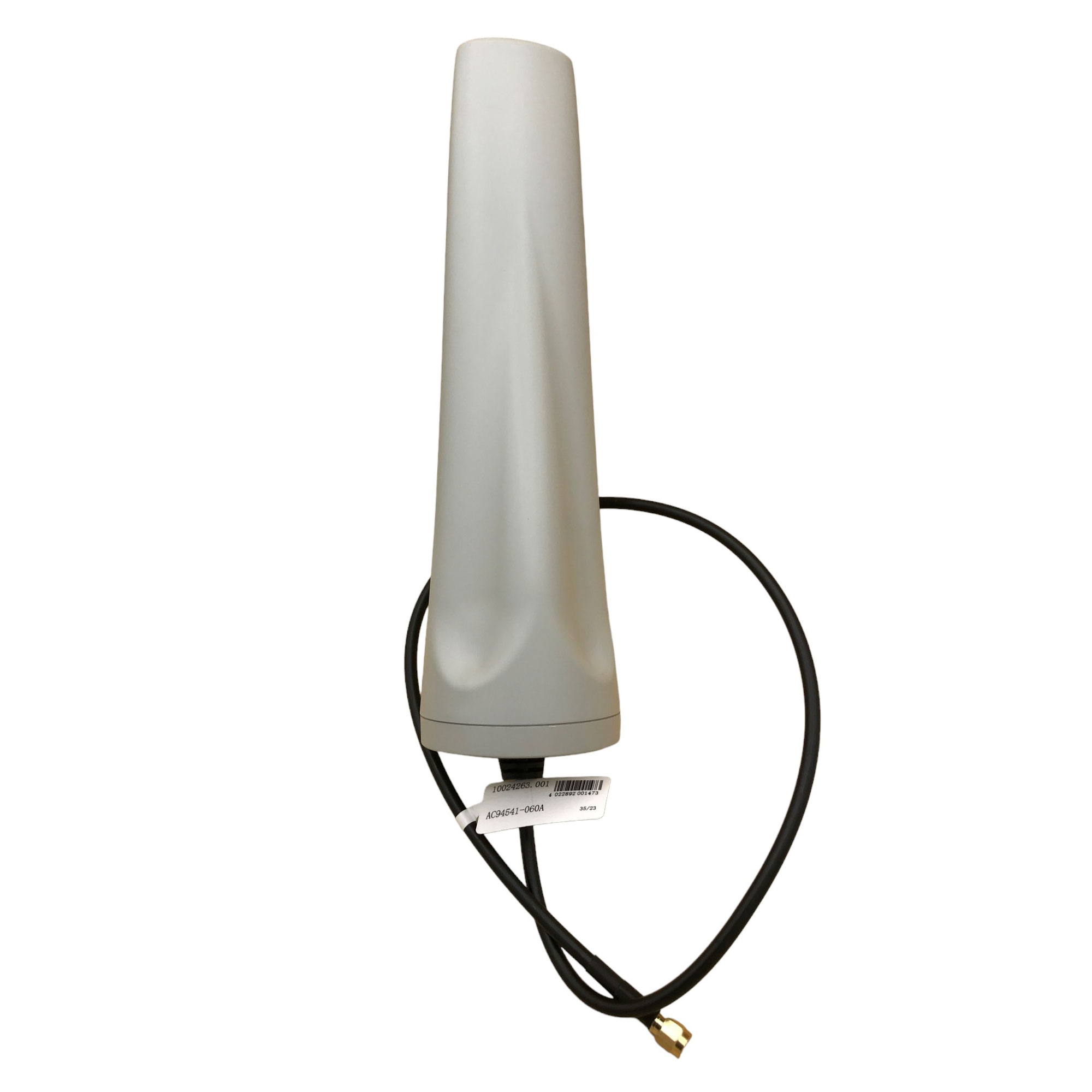

The Antenna Company AC94541-060A
Image shown is a representation only
Manufacturer
Manufacturer No
AC94541-060A
Packaging
Box
Description
ANT 5G 4G LTE 450MHZ DOME IP67
Detailed Description
RF ANTENNA 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS Dome SMA Male Panel Mount
DataSheet
Gain
1.8dBi, 2.6dBi, 4.8dBi, 3.4dBi, 3.5dBi, 2.7dBi, 2.8dBi, 4.4dBi, 3.3dBi
VSWR
3.4, 1.4, 3.5, 3.7, 3.7, 5.3, 3.2, 2.8, 2.7
Series
AC94541
Features
Cable - 600mm
Packaging
Box
Part Status
Active
Power - Max
45 W
Return Loss
-5.3dB, -15.6dB, -5.1dB, -4.8dB, -4.8dB, -3.3dB, -5.6dB, -6.5dB
Termination
SMA Male
Antenna Type
Dome
Applications
4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS
Height (Max)
10.039" (255.00mm)
Manufacturer
The Antenna Company
Mounting Type
Panel Mount
Frequency Group
Wide Band
Frequency Range
410MHz ~ 427MHz, 450MHz ~ 467MHz, 695MHz ~ 805MHz, 790MHz ~ 960MHz, 1.425GHz ~ 1.675GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.48GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz
Number of Bands
9
Ingress Protection
IP67
RF Family/Standard
Cellular
Base Product Number
AC94541
Frequency (Center/Band)
418.5MHz, 458.5MHz, 750MHz, 875MHz, 1.55GHz, 1.947GHz, 2.35GHz, 2.59GHz, 3.55GHz
| Attribute | Value |
|---|---|
| Gain | 1.8dBi, 2.6dBi, 4.8dBi, 3.4dBi, 3.5dBi, 2.7dBi, 2.8dBi, 4.4dBi, 3.3dBi |
| VSWR | 3.4, 1.4, 3.5, 3.7, 3.7, 5.3, 3.2, 2.8, 2.7 |
| Series | AC94541 |
| Features | Cable - 600mm |
| Packaging | Box |
| Part Status | Active |
| Power - Max | 45 W |
| Return Loss | -5.3dB, -15.6dB, -5.1dB, -4.8dB, -4.8dB, -3.3dB, -5.6dB, -6.5dB |
| Termination | SMA Male |
| Antenna Type | Dome |
| Applications | 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS |
| Height (Max) | 10.039" (255.00mm) |
| Manufacturer | The Antenna Company |
| Mounting Type | Panel Mount |
| Frequency Group | Wide Band |
| Frequency Range | 410MHz ~ 427MHz, 450MHz ~ 467MHz, 695MHz ~ 805MHz, 790MHz ~ 960MHz, 1.425GHz ~ 1.675GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.48GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz |
| Number of Bands | 9 |
| Ingress Protection | IP67 |
| RF Family/Standard | Cellular |
| Base Product Number | AC94541 |
| Frequency (Center/Band) | 418.5MHz, 458.5MHz, 750MHz, 875MHz, 1.55GHz, 1.947GHz, 2.35GHz, 2.59GHz, 3.55GHz |
