Step1: Product

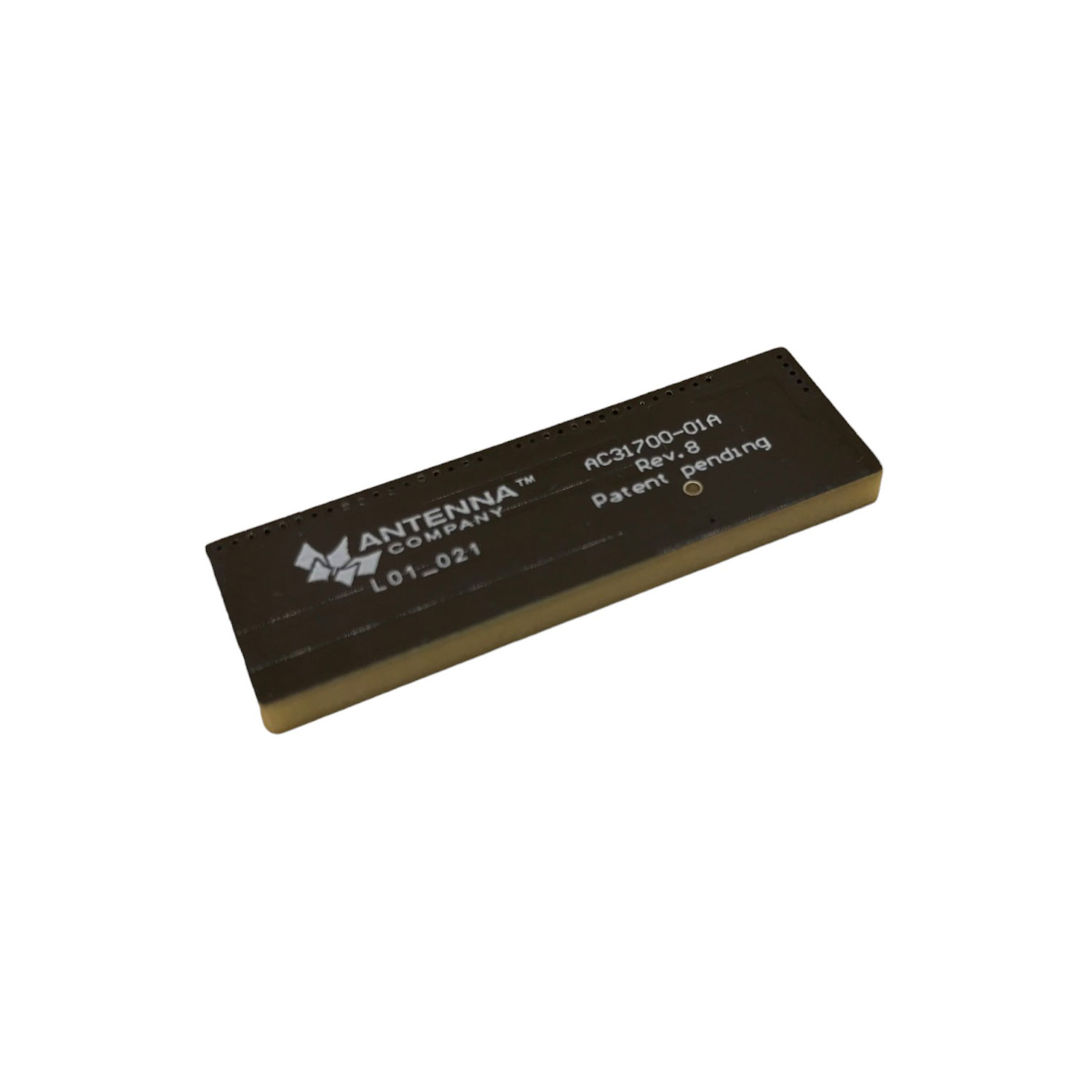

The Antenna Company AC31700-01A
Image shown is a representation only
Manufacturer
Manufacturer No
AC31700-01A
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
ANT 5G 4G LTE WIDEBAND SMD
Detailed Description
RF ANTENNA 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS Chip Solder Surface Mount
Datasheet
Gain
0.7dBi, 0.7dBi, 4dBi, dBi6, 5dBi, 5dBi, 3.3dBi
VSWR
2.6, 2, 3.7, 4, 4.2, 3.8, 3.8
Packaging
Tape & Reel (TR); Cut Tape (CT)
Power - Max
2 W
Return Loss
-7dB, -9.5dB, -4.8dB, -4.4dB, -4.2dB, -4.7dB, -4.7dB
Termination
Solder
Antenna Type
Chip
Applications
4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS
Height (Max)
0.118" (3.00mm)
Manufacturer
The Antenna Company
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
698MHz ~ 803MHz, 791MHz ~ 894MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
Number of Bands
7
RF Family/Standard
Cellular
Base Product Number
AC31700
Frequency (Center/Band)
700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 3.5GHz, 5GHz
| Attribute | Value |
|---|---|
| Gain | 0.7dBi, 0.7dBi, 4dBi, dBi6, 5dBi, 5dBi, 3.3dBi |
| VSWR | 2.6, 2, 3.7, 4, 4.2, 3.8, 3.8 |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Power - Max | 2 W |
| Return Loss | -7dB, -9.5dB, -4.8dB, -4.4dB, -4.2dB, -4.7dB, -4.7dB |
| Termination | Solder |
| Antenna Type | Chip |
| Applications | 4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS |
| Height (Max) | 0.118" (3.00mm) |
| Manufacturer | The Antenna Company |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 698MHz ~ 803MHz, 791MHz ~ 894MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz |
| Number of Bands | 7 |
| RF Family/Standard | Cellular |
| Base Product Number | AC31700 |
| Frequency (Center/Band) | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 3.5GHz, 5GHz |
